Manufacturer: Hirosugi Instruments Co., Ltd.

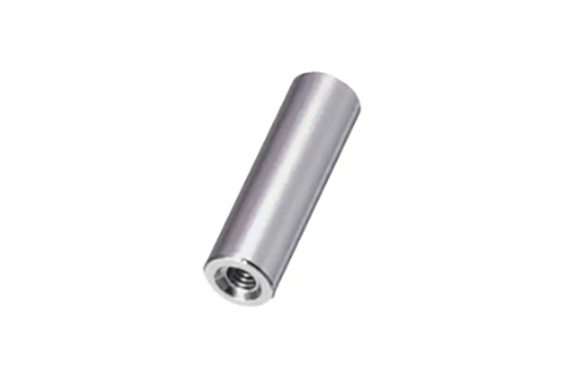

Model: ARL-2000E

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

Process

Pickling

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2 (0.4)	4	ARL-2004E	Fully threaded
	4.5	ARL-2004.5E
	5	ARL-2005E
	5.5	ARL-2005.5E
	6	ARL-2006E
	6.5	ARL-2006.5E
	7	ARL-2007E
	7.5	ARL-2007.5E
	8	ARL-2008E
	8.5	ARL-2008.5E
	9	ARL-2009E
	9.5	ARL-2009.5E
	10	ARL-2010E
	11	ARL-2011E	5
	12	ARL-2012E	5
	12.5	ARL-2012.5E	5
	13	ARL-2013E	5
	14	ARL-2014E	5
	15	ARL-2015E	5
	16	ARL-2016E	5
	16.5	ARL-2016.5E	5
	17	ARL-2017E	5
	17.5	ARL-2017.5E	5
	18	ARL-2018E	5
	19	ARL-2019E	5
	20	ARL-2020E	5
	twenty one	ARL-2021E	5
	twenty two	ARL-2022E	5
	twenty three	ARL-2023E	5
	twenty four	ARL-2024E	5
	twenty five	ARL-2025E	5
	26	ARL-2026E	5
	27	ARL-2027E	5
	28	ARL-2028E	5
	29	ARL-2029E	5
	30	ARL-2030E	5
