Manufacturer: Hirosugi Instruments Co., Ltd.

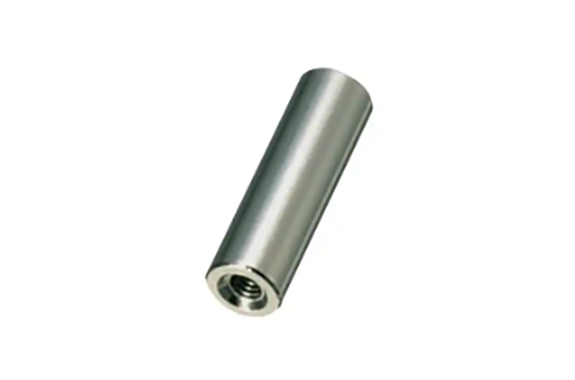

Model: ARL-2000KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2 (0.4)	4	ARL-2004KE	Fully threaded
	4.5	ARL-2004.5KE
	5	ARL-2005KE
	5.5	ARL-2005.5KE
	6	ARL-2006KE
	6.5	ARL-2006.5KE
	7	ARL-2007KE
	7.5	ARL-2007.5KE
	8	ARL-2008KE
	8.5	ARL-2008.5KE
	9	ARL-2009KE
	9.5	ARL-2009.5KE
	10	ARL-2010KE
	11	ARL-2011KE	5
	12	ARL-2012KE	5
	12.5	ARL-2012.5KE	5
	13	ARL-2013KE	5
	14	ARL-2014KE	5
	15	ARL-2015KE	5
	16	ARL-2016KE	5
	16.5	ARL-2016.5KE	5
	17	ARL-2017KE	5
	17.5	ARL-2017.5KE	5
	18	ARL-2018KE	5
	19	ARL-2019KE	5
	20	ARL-2020KE	5
	twenty one	ARL-2021KE	5
	twenty two	ARL-2022KE	5
	twenty three	ARL-2023KE	5
	twenty four	ARL-2024KE	5
	twenty five	ARL-2025KE	5
	26	ARL-2026KE	5
	27	ARL-2027KE	5
	28	ARL-2028KE	5
	29	ARL-2029KE	5
	30	ARL-2030KE	5
