Manufacturer: Hirosugi Instruments Co., Ltd.

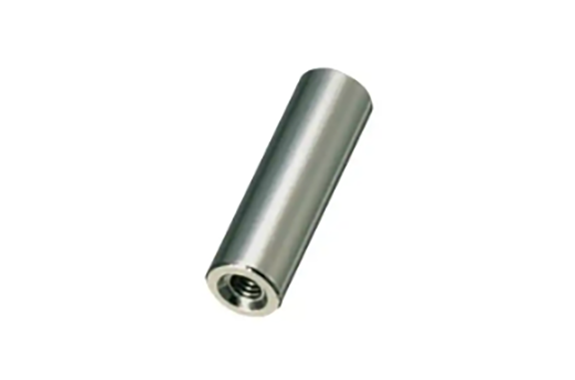

Model: ARL-2600KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.6 (0.45)	4	ARL-2604KE	Fully threaded
	4.5	ARL-2604.5KE
	5	ARL-2605KE
	5.5	ARL-2605.5KE
	6	ARL-2606KE
	6.5	ARL-2606.5KE
	7	ARL-2607KE
	7.5	ARL-2607.5KE
	8	ARL-2608KE
	8.5	ARL-2608.5KE
	9	ARL-2609KE
	9.5	ARL-2609.5KE
	10	ARL-2610KE
	11	ARL-2611KE
	12	ARL-2612KE
	12.5	ARL-2612.5KE	5
	13	ARL-2613KE	5
	14	ARL-2614KE	5
	15	ARL-2615KE	5
	16	ARL-2616KE	5
	16.5	ARL-2616.5KE	5
	17	ARL-2617KE	5
	17.5	ARL-2617.5KE	5
	18	ARL-2618KE	5
	19	ARL-2619KE	5
	20	ARL-2620KE	5
	twenty one	ARL-2621KE	5
	twenty two	ARL-2622KE	5
	twenty three	ARL-2623KE	5
	twenty four	ARL-2624KE	5
	twenty five	ARL-2625KE	5
	26	ARL-2626KE	5
	27	ARL-2627KE	5
	28	ARL-2628KE	5
	29	ARL-2629KE	5
	30	ARL-2630KE	5
