Manufacturer: Hirosugi Instruments Co., Ltd.

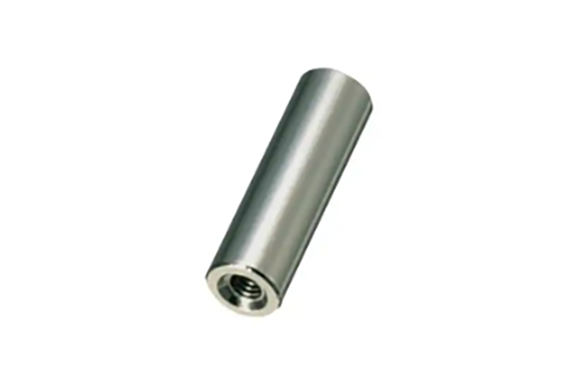

Model: ARL-300KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ARL-304KE	Fully threaded
	4.5	ARL-304.5KE
	5	ARL-305KE
	5.5	ARL-305.5KE
	6	ARL-306KE
	6.5	ARL-306.5KE
	7	ARL-307KE
	7.5	ARL-307.5KE
	8	ARL-308KE
	8.5	ARL-308.5KE
	9	ARL-309KE
	9.5	ARL-309.5KE
	10	ARL-310KE
	11	ARL-311KE
	12	ARL-312KE
	12.5	ARL-312.5KE
	13	ARL-313KE
	14	ARL-314KE
	15	ARL-315KE
	16	ARL-316KE	6
	16.5	ARL-316.5KE	6
	17	ARL-317KE	6
	17.5	ARL-317.5KE	6
	18	ARL-318KE	6
	19	ARL-319KE	6
	20	ARL-320KE	6
	twenty one	ARL-321KE	6
	twenty two	ARL-322KE	6
	twenty three	ARL-323KE	6
	twenty four	ARL-324KE	6
	twenty five	ARL-325KE	6
	26	ARL-326KE	6
	27	ARL-327KE	6
	28	ARL-328KE	6
	29	ARL-329KE	6
	30	ARL-330KE	6
	35	ARL-335KE	6
	40	ARL-340KE	6
	45	ARL-345KE	6
	50	ARL-350KE	6
	55	ARL-355KE	6
	60	ARL-360KE	6
