Manufacturer: Hirosugi Instruments Co., Ltd.

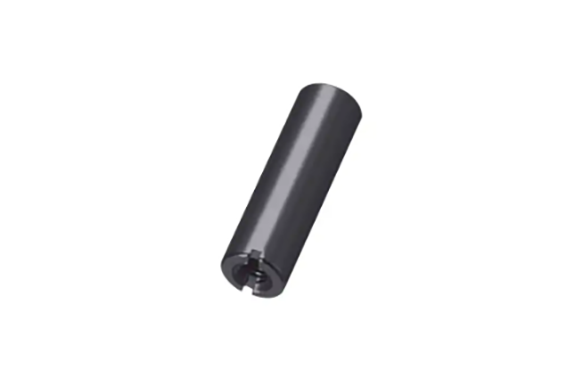

Model: ARL-300SBE

Specification

Material

For M2: Lead-free free-cutting aluminum (CB156)
Lead content 10ppm or less
For M2.6 to M4: Lead-free free-cutting aluminum (KS26)
Lead content 300ppm or less

Process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5) slotted	4	ARL-304SBE	Fully threaded
	4.5	ARL-304.5SBE
	5	ARL-305SBE
	5.5	ARL-305.5SBE
	6	ARL-306SBE
	6.5	ARL-306.5SBE
	7	ARL-307SBE
	7.5	ARL-307.5SBE
	8	ARL-308SBE
	8.5	ARL-308.5SBE
	9	ARL-309SBE
	9.5	ARL-309.5SBE
	10	ARL-310SBE
	11	ARL-311SBE
	12	ARL-312SBE
	12.5	ARL-312.5SBE
	13	ARL-313SBE
	14	ARL-314SBE
	15	ARL-315SBE
	16	ARL-316SBE	6
	16.5	ARL-316.5SBE	6
	17	ARL-317SBE	6
	17.5	ARL-317.5SBE	6
	18	ARL-318SBE	6
	19	ARL-319SBE	6
	20	ARL-320SBE	6
	twenty one	ARL-321SBE	6
	twenty two	ARL-322SBE	6
	twenty three	ARL-323SBE	6
	twenty four	ARL-324SBE	6
	twenty five	ARL-325SBE	6
	26	ARL-326SBE	6
	27	ARL-327SBE	6
	28	ARL-328SBE	6
	29	ARL-329SBE	6
	30	ARL-330SBE	6
	35	ARL-335SBE	6
	40	ARL-340SBE	6
	45	ARL-345SBE	6
	50	ARL-350SBE	6
	55	ARL-355SBE	6
	60	ARL-360SBE	6
