Manufacturer: Hirosugi Instruments Co., Ltd.

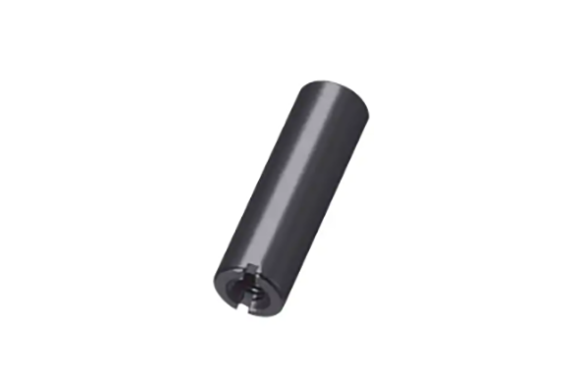

Model: ARL-400SBE

Specification

Material

For M2: Lead-free free-cutting aluminum (CB156)
Lead content 10ppm or less
For M2.6 to M4: Lead-free free-cutting aluminum (KS26)
Lead content 300ppm or less

Process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7) slotted	5	ARL-405SBE	Fully threaded
	5.5	ARL-405.5SBE
	6	ARL-406SBE
	6.5	ARL-406.5SBE
	7	ARL-407SBE
	7.5	ARL-407.5SBE
	8	ARL-408SBE
	8.5	ARL-408.5SBE
	9	ARL-409SBE
	9.5	ARL-409.5SBE
	10	ARL-410SBE
	11	ARL-411SBE
	12	ARL-412SBE
	12.5	ARL-412.5SBE
	13	ARL-413SBE
	14	ARL-414SBE
	15	ARL-415SBE
	16	ARL-416SBE
	16.5	ARL-416.5SBE
	17	ARL-417SBE	8
	17.5	ARL-417.5SBE	8
	18	ARL-418SBE	8
	19	ARL-419SBE	8
	20	ARL-420SBE	8
	twenty one	ARL-421SBE	8
	twenty two	ARL-422SBE	8
	twenty three	ARL-423SBE	8
	twenty four	ARL-424SBE	8
	twenty five	ARL-425SBE	8
	26	ARL-426SBE	8
	27	ARL-427SBE	8
	28	ARL-428SBE	8
	29	ARL-429SBE	8
	30	ARL-430SBE	8
	35	ARL-435SBE	8
	40	ARL-440SBE	8
	45	ARL-445SBE	8
	50	ARL-450SBE	8
	55	ARL-455SBE	8
	60	ARL-460SBE	8
