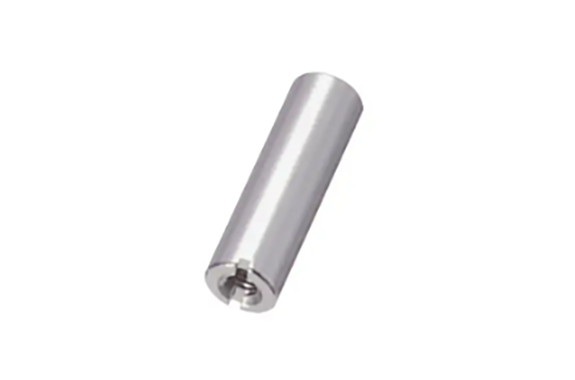

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ARL-400SE

Specification

Material

For M2: Lead-free free-cutting aluminum (CB156)
Lead content 10ppm or less
For M2.6 to M4: Lead-free free-cutting aluminum (KS26)
Lead content 300ppm or less

Process

Pickling

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7) slotted	5	ARL-405SE	Fully threaded
	5.5	ARL-405.5SE
	6	ARL-406SE
	6.5	ARL-406.5SE
	7	ARL-407SE
	7.5	ARL-407.5SE
	8	ARL-408SE
	8.5	ARL-408.5SE
	9	ARL-409SE
	9.5	ARL-409.5SE
	10	ARL-410SE
	11	ARL-411SE
	12	ARL-412SE
	12.5	ARL-412.5SE
	13	ARL-413SE
	14	ARL-414SE
	15	ARL-415SE
	16	ARL-416SE
	16.5	ARL-416.5SE
	17	ARL-417SE	8
	17.5	ARL-417.5SE	8
	18	ARL-418SE	8
	19	ARL-419SE	8
	20	ARL-420SE	8
	twenty one	ARL-421SE	8
	twenty two	ARL-422SE	8
	twenty three	ARL-423SE	8
	twenty four	ARL-424SE	8
	twenty five	ARL-425SE	8
	26	ARL-426SE	8
	27	ARL-427SE	8
	28	ARL-428SE	8
	29	ARL-429SE	8
	30	ARL-430SE	8
	35	ARL-435SE	8
	40	ARL-440SE	8
	45	ARL-445SE	8
	50	ARL-450SE	8
	55	ARL-455SE	8
	60	ARL-460SE	8
