Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASE-2600-3N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

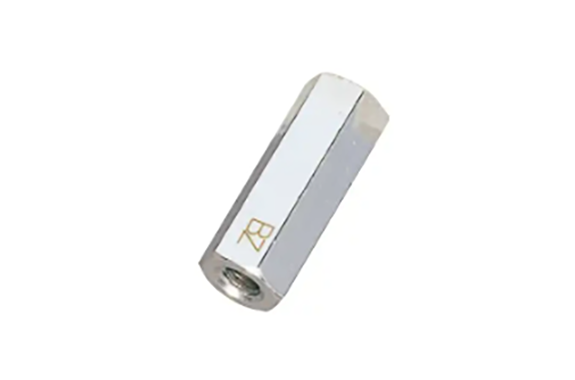

*The body displays the BZ laser mark for identification.

Exterior drawings

Thread diameter, flat diameter (pitch)	L	Part Number	ℓ1
M2.6 3.5 (0.45)	3	ASE-2603-3N	Fully threaded
	3.5	ASE-2603.5-3N
	4	ASE-2604-3N
	4.5	ASE-2604.5-3N
	5	ASE-2605-3N
	5.5	ASE-2605.5-3N
	6	ASE-2606-3N
	6.5	ASE-2606.5-3N
	7	ASE-2607-3N
	7.5	ASE-2607.5-3N
	8	ASE-2608-3N
	8.5	ASE-2608.5-3N
	9	ASE-2609-3N
	9.5	ASE-2609.5-3N
	10	ASE-2610-3N
	11	ASE-2611-3N
	12	ASE-2612-3N
	12.5	ASE-2612.5-3N
	13	ASE-2613-3N
	14	ASE-2614-3N	5
	15	ASE-2615-3N	5
	16	ASE-2616-3N	5
	16.5	ASE-2616.5-3N	5
	17	ASE-2617-3N	5
	17.5	ASE-2617.5-3N	5
	18	ASE-2618-3N	5
	19	ASE-2619-3N	5
	20	ASE-2620-3N	5
	twenty one	ASE-2621-3N	5
	twenty two	ASE-2622-3N	5
	twenty three	ASE-2623-3N	5
	twenty four	ASE-2624-3N	5
	twenty five	ASE-2625-3N	5
	26	ASE-2626-3N	5
	27	ASE-2627-3N	5
	28	ASE-2628-3N	5
	29	ASE-2629-3N	5
	30	ASE-2630-3N	5
