Manufacturer: Hirosugi Instruments Co., Ltd.

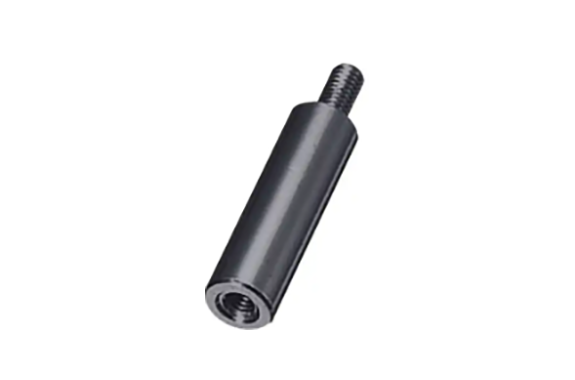

Model: BRL-400BE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	6	BRL-406BE	3.5
	6.5	BRL-406.5BE	3.5
	7	BRL-407BE	4.5
	7.5	BRL-407.5BE	4.5
	8	BRL-408BE	5.5
	8.5	BRL-408.5BE	5.5
	9	BRL-409BE	6
	9.5	BRL-409.5BE	6
	10	BRL-410BE	7
	11	BRL-411BE	8
	12	BRL-412BE	8
	12.5	BRL-412.5BE	8
	13	BRL-413BE	8
	14	BRL-414BE	8
	15	BRL-415BE	8
	16	BRL-416BE	8
	16.5	BRL-416.5BE	8
	17	BRL-417BE	8
	17.5	BRL-417.5BE	8
	18	BRL-418BE	8
	19	BRL-419BE	8
	20	BRL-420BE	8
	21	BRL-421BE	8
	22	BRL-422BE	8
	23	BRL-423BE	8
	24	BRL-424BE	8
	25	BRL-425BE	8
	26	BRL-426BE	8
	27	BRL-427BE	8
	28	BRL-428BE	8
	29	BRL-429BE	8
	30	BRL-430BE	8
	35	BRL-435BE	8
	40	BRL-440BE	8
	45	BRL-445BE	8
	50	BRL-450BE	8
	55	BRL-455BE	8
	60	BRL-460BE	8
