Manufacturer: Hirosugi Instruments Co., Ltd.

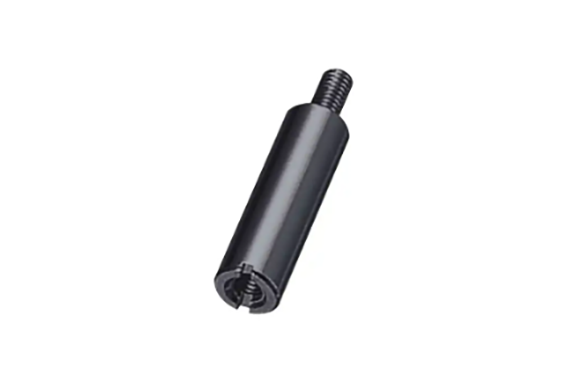

Model: BRL-400SBE

Specification

Material

For M2: Lead-free free-cutting aluminum (CB156)
Lead content 10ppm or less
For M2.6 to M4: Lead-free free-cutting aluminum (KS26)
Lead content 300ppm or less

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7) slotted	6	BRL-406SBE	3.5
	6.5	BRL-406.5SBE	3.5
	7	BRL-407SBE	4.5
	7.5	BRL-407.5SBE	4.5
	8	BRL-408SBE	5.5
	8.5	BRL-408.5SBE	5.5
	9	BRL-409SBE	6
	9.5	BRL-409.5SBE	6
	10	BRL-410SBE	7
	11	BRL-411SBE	8
	12	BRL-412SBE	8
	12.5	BRL-412.5SBE	8
	13	BRL-413SBE	8
	14	BRL-414SBE	8
	15	BRL-415SBE	8
	16	BRL-416SBE	8
	16.5	BRL-416.5SBE	8
	17	BRL-417SBE	8
	17.5	BRL-417.5SBE	8
	18	BRL-418SBE	8
	19	BRL-419SBE	8
	20	BRL-420SBE	8
	twenty one	BRL-421SBE	8
	twenty two	BRL-422SBE	8
	twenty three	BRL-423SBE	8
	twenty four	BRL-424SBE	8
	twenty five	BRL-425SBE	8
	26	BRL-426SBE	8
	27	BRL-427SBE	8
	28	BRL-428SBE	8
	29	BRL-429SBE	8
	30	BRL-430SBE	8
	35	BRL-435SBE	8
	40	BRL-440SBE	8
	45	BRL-445SBE	8
	50	BRL-450SBE	8
	55	BRL-455SBE	8
	60	BRL-460SBE	8
