Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BS-2000E

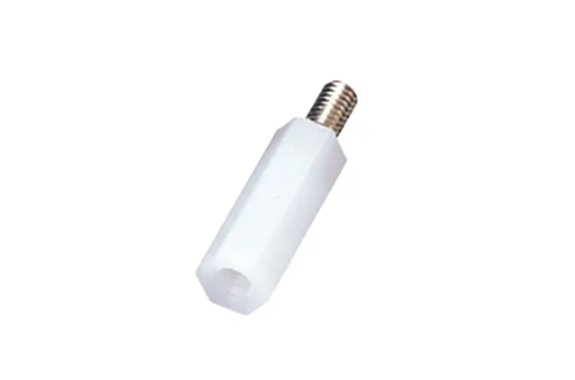

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15.5,
±0.2 from L=16,
ℓ dimension:
3.2 for L=6 to 7.5,
3.7 for L=8 or more

Thread diameter (pitch)	L	Part Number
M2 (0.4)	6	BS-2006E
	6.5	BS-2006.5E
	7	BS-2007E
	7.5	BS-2007.5E
	8	BS-2008E
	8.5	BS-2008.5E
	9	BS-2009E
	9.5	BS-2009.5E
	10	BS-2010E
	10.5	BS-2010.5E
	11	BS-2011E
	11.5	BS-2011.5E
	12	BS-2012E
	12.5	BS-2012.5E
	13	BS-2013E
	13.5	BS-2013.5E
	14	BS-2014E
	14.5	BS-2014.5E
	15	BS-2015E
	15.5	BS-2015.5E
	16	BS-2016E
	16.5	BS-2016.5E
	17	BS-2017E
	17.5	BS-2017.5E
	18	BS-2018E
	18.5	BS-2018.5E
	19	BS-2019E
	19.5	BS-2019.5E
	20	BS-2020E
	twenty one	BS-2021E
	twenty two	BS-2022E
	twenty three	BS-2023E
	twenty four	BS-2024E
	twenty five	BS-2025E
	26	BS-2026E
	27	BS-2027E
	28	BS-2028E
	29	BS-2029E
	30	BS-2030E
