Manufacturer: Hirosugi Instruments Co., Ltd.

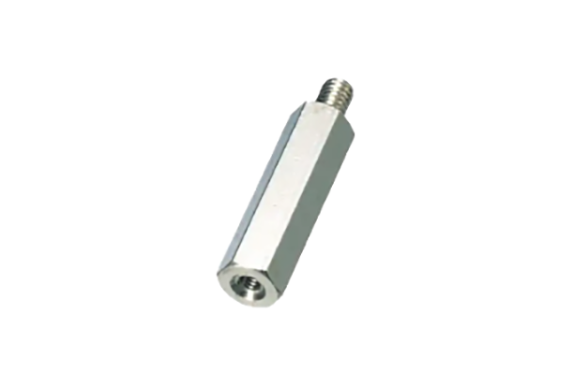

Model: BSB-600E

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

Process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M6 (1.0)	10	BSB-610E	7
	12	BSB-612E	9
	15	BSB-615E	12
	17	BSB-617E	14
	20	BSB-620E	14
	twenty three	BSB-623E	14
	twenty five	BSB-625E	14
	27	BSB-627E	14
	30	BSB-630E	14
	33	BSB-633E	14
	35	BSB-635E	14
	37	BSB-637E	14
	40	BSB-640E	14
	43	BSB-643E	14
	45	BSB-645E	14
	48	BSB-648E	14
	50	BSB-650E	14
	52	BSB-652E	14
	55	BSB-655E	14
	57	BSB-657E	14
	60	BSB-660E	14
	62	BSB-662E	14
	65	BSB-665E	14
	68	BSB-668E	14
	70	BSB-670E	14
	72	BSB-672E	14
	75	BSB-675E	14
	78	BSB-678E	14
	80	BSB-680E	14
	85	BSB-685E	14
	90	BSB-690E	14
	95	BSB-695E	14
	100	BSB-6100E	14
	105	BSB-6105E	14
	110	BSB-6110E	14
	115	BSB-6115E	14
	120	BSB-6120E	14
	125	BSB-6125E	14
	130	BSB-6130E	14
	135	BSB-6135E	14
	140	BSB-6140E	14
	145	BSB-6145E	14
	150	BSB-6150E	14
