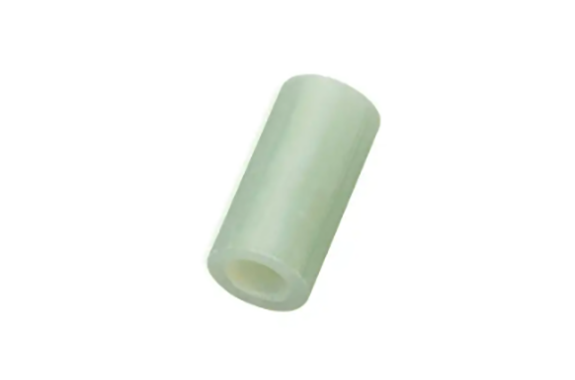

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CG-300

Specification

Material

Glass epoxy

color

Transparent yellow-green

Exterior drawings

Tolerance of L
: ±0.1 up to L=15
, ±0.15 from L=16

Screw diameter	L	Part Number
For M3	1	CG-301
	1.5	CG-301.5
	2	CG-302
	2.5	CG-302.5
	3	CG-303
	3.5	CG-303.5
	4	CG-304
	4.5	CG-304.5
	5	CG-305
	5.5	CG-305.5
	6	CG-306
	6.5	CG-306.5
	7	CG-307
	7.5	CG-307.5
	8	CG-308
	8.5	CG-308.5
	9	CG-309
	9.5	CG-309.5
	10	CG-310
	11	CG-311
	12	CG-312
	13	CG-313
	14	CG-314
	15	CG-315
	16	CG-316
	17	CG-317
	18	CG-318
	19	CG-319
	20	CG-320
	twenty one	CG-321
	twenty two	CG-322
	twenty three	CG-323
	twenty four	CG-324
	twenty five	CG-325
	26	CG-326
	27	CG-327
	28	CG-328
	29	CG-329
	30	CG-330
	35	CG-335
	40	CG-340
	45	CG-345
	50	CG-350
