Manufacturer: Hirosugi Instruments Co., Ltd.

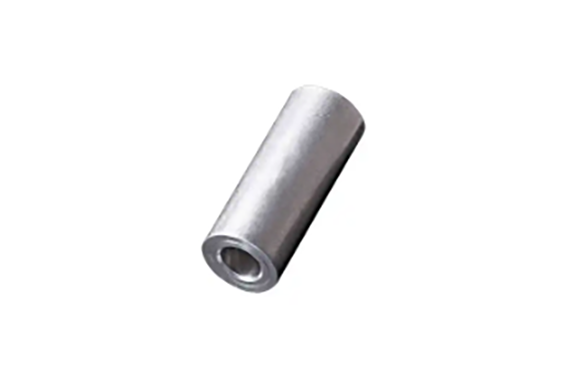

Model: CL-1000KE

Specification

Material

For M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
Lead content of 10 ppm or less
For M2.6 to M12: Lead-free, free-cutting aluminum
Lead content of 300 ppm or less

process

Electroless Nickel Plating

Exterior drawings

Screw diameter	L	Part Number
For M10	2	CL-1002KE
	3	CL-1003KE
	4	CL-1004KE
	5	CL-1005KE
	6	CL-1006KE
	7	CL-1007KE
	8	CL-1008KE
	9	CL-1009KE
	10	CL-1010KE
	11	CL-1011KE
	12	CL-1012KE
	13	CL-1013KE
	14	CL-1014KE
	15	CL-1015KE
	16	CL-1016KE
	17	CL-1017KE
	18	CL-1018KE
	19	CL-1019KE
	20	CL-1020KE
	twenty one	CL-1021KE
	twenty two	CL-1022KE
	twenty three	CL-1023KE
	twenty four	CL-1024KE
	twenty five	CL-1025KE
	26	CL-1026KE
	27	CL-1027KE
	28	CL-1028KE
	29	CL-1029KE
	30	CL-1030KE
