Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-300H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

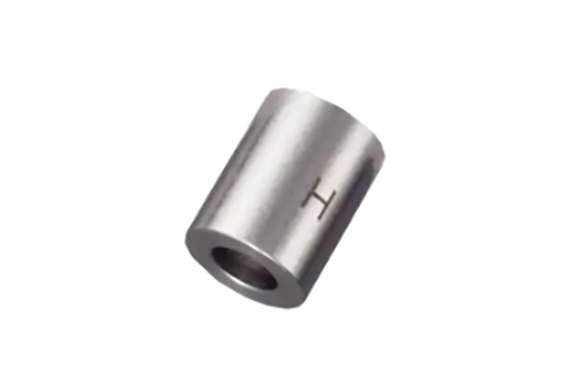

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

Screw diameter	L	Part Number
M3	1	CU-301H
	1.5	CU-301.5H
	2	CU-302H
	2.5	CU-302.5H
	3	CU-303H
	3.5	CU-303.5H
	4	CU-304H
	4.5	CU-304.5H
	5	CU-305H
	5.5	CU-305.5H
	6	CU-306H
	6.5	CU-306.5H
	7	CU-307H
	7.5	CU-307.5H
	8	CU-308H
	8.5	CU-308.5H
	9	CU-309H
	9.5	CU-309.5H
	10	CU-310H
	12	CU-312H
	15	CU-315H
	18	CU-318H
	20	CU-320H
