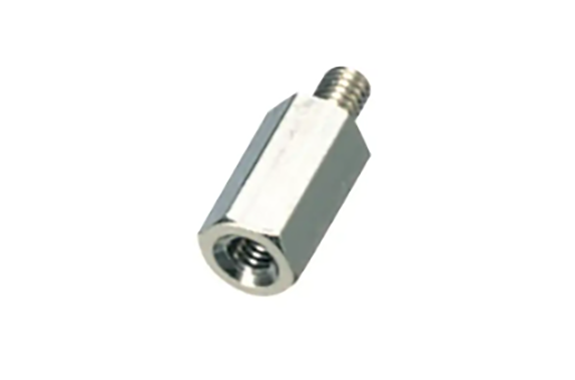

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: MSB-2500-03E

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

Process

Nickel plating (Ni)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.5 (0.45)	4	MSB-2504-03E	2
	5	MSB-2505-03E	3
	6	MSB-2506-03E	4
	7	MSB-2507-03E	5
	8	MSB-2508-03E	5
	9	MSB-2509-03E	5
	10	MSB-2510-03E	5
	11	MSB-2511-03E	5
	12	MSB-2512-03E	5
	13	MSB-2513-03E	5
	14	MSB-2514-03E	5
	15	MSB-2515-03E	5
	16	MSB-2516-03E	5
	17	MSB-2517-03E	5
	18	MSB-2518-03E	5
	19	MSB-2519-03E	5
	20	MSB-2520-03E	5
	twenty one	MSB-2521-03E	5
	twenty two	MSB-2522-03E	5
	twenty three	MSB-2523-03E	5
	twenty four	MSB-2524-03E	5
	twenty five	MSB-2525-03E	5
	26	MSB-2526-03E	5
	27	MSB-2527-03E	5
	28	MSB-2528-03E	5
	29	MSB-2529-03E	5
	30	MSB-2530-03E	5
