Isolite Insulating Isowool / Fibermax D-Block
Manufacturer: Isolite Insulating
ISOWOOL / FIBERMAX D-BLOCK
Features
Superior uniformity, resilience and dimensional accuracy

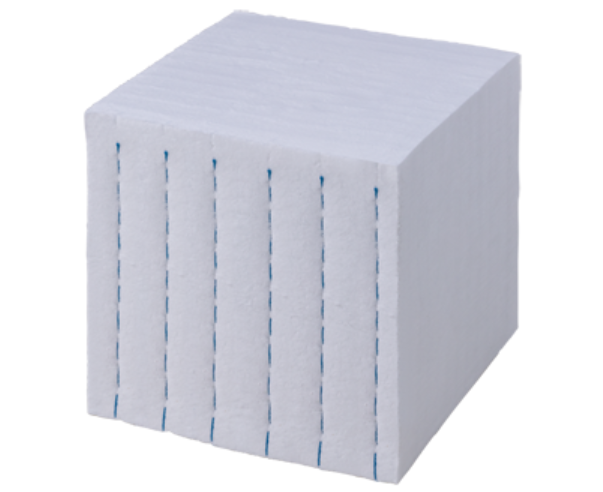

D-BLOCK is made of stacked multiple layers of BLANKET which are sewn together under compression. This product has superior uniformity, resilience and dimensional accuracy.
Various support brackets are prepared according to the construction conditions.
Quality
| D | ZD | 15D | 15D | ||
| BLOCK | BLOCK | BLOCK NE | BLOCK SP | ||
| Max. Service Temperature(℃) | 1260 | 1450 | 1500 | 1550 | |
| Bulk Density(kg/m³) | 170 | 180 | 170 | 140 | |
| Linear Shrinkage (%) | 1000℃×24hrs | 0.8 | – | – | – |
| 1200℃×24hrs | 2.0 | 1.2 | 0.2 | 0.2 | |
| 1300℃×24hrs | – | 1.5 | 0.3 | 0.3 | |
| 1400℃×24hrs | – | 2.0 | 0.8 | 0.6 | |
| 1500℃×24hrs | – | – | 1.6 | 1.1 | |
| Thermal Conductivity (W/(m・K)) JIS A1412-1 ※Calculation value | 800℃ | – | – | 0.17 | 0.18 |
| 1000℃ | – | – | 0.23 | 0.25 | |
| 1200℃ | – | – | 0.31 | 0.35 | |
| 1400℃ | – | – | 0.41 | 0.48 | |
Standard Size (mm)
| Size (mm) | Thickness | 30* | 50 | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|
| Width | 200 | 300 | |||||||
| Length | 150 | 150 | 300 | ||||||
| Q’ty per Carton | 120 | 48 | 24 | 12 | 8 | 6 | 4 | 4 | |
*15D・BLOCK NE only.
