I.T.O Corporation

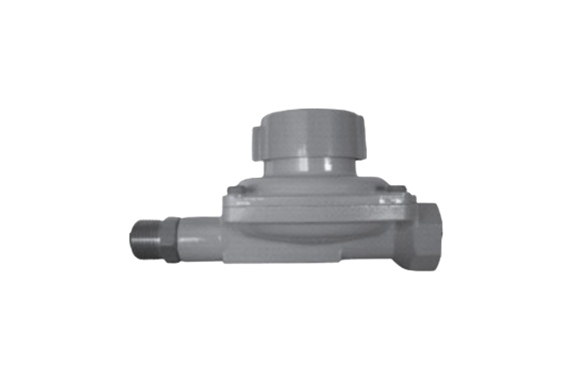

ITO H5-EX(S)-NR House Regulator
Manufacturer: I.T.O Corporation
Model: H5-EX(S)-NR
- H5-EX(S)-NR is a meter regulator from medium pressure to low pressure.
- Designed to supply gas for low pressure meters.

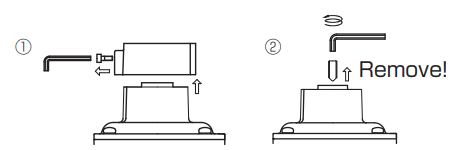

- Even if you convert a gas from LPG to NG after installation, you can change the set point from LPG to NG by an easy operation. To do this remove an inner adjusting screw and it will still ensure a proper and stable gas supply, there is no need to exchange your fixed-type meter regulator and no need to adjust it manually.
Specifications
| Model: H5-EX(S)-NR | ||
|---|---|---|
| Gas Type | LPG | NG |
| Maximum Flow Rate | 6kg/h | 5.5m³/h (normal) |
| Inlet Pressure | 0.03~0.15MPa | 0.03~0.20MPa |
| Outlet Pressure | 2.96±0.44kPa | 2.16±0.32kPa |
| Lockup Pressure | ≤3.50kPa | ≤2.70kPa |
| Inlet Connection | R1/2 | |
| Outlet Connection | Rc1/2 | |
*An inner safety relief valve is not incorporated.
*Unless otherwise specified, the product is preset at the factory for LPG use.

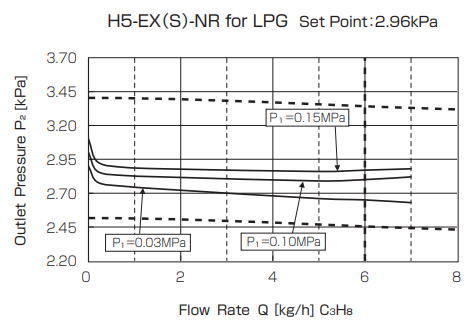

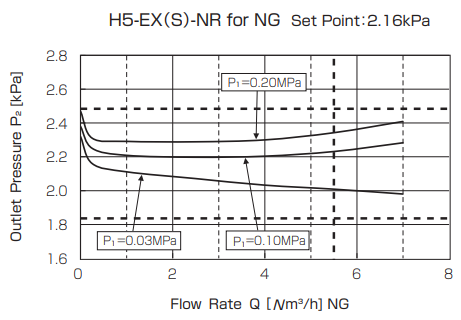

| Flow Rate |
|---|
 |
 |
