I.T.O Corporation

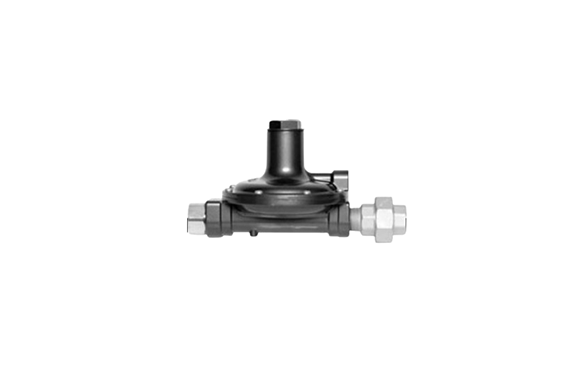

ITO HS/ SHT/ C/ G/ GL Single Stage Regulators
Manufacturer: I.T.O Corporation
Model: HS/ SHT/ C/ G/ GL
*Flange gaskets, bolts, nuts and washers are not included.
Range Specification
| Inlet Pressure | 0.07~1.56MPa | Outlet Pressure | 2.30~3.30kPa |
|---|---|---|---|
| Lockup Pressure | ≤3.50kPa | Safety Relief Valve Working Pressure | 5.60~8.40kPa |
| 5kg/h | 5kg/h | 5kg/h |
|---|---|---|
 |  |  |
| Inlet: JIS POL Handwheel Outlet: Rc1/2 | Inlet: JIS POL Mechanical Outlet: Rc1/2 | Inlet: Rc1/4 Outlet: Rc1/2 |
| 7kg/h | 7kg/h | 7kg/h |
 |  |  |
| Inlet: JIS POL Handwheel Outlet: Rc1/2 | Inlet: JIS POL Mechanical Outlet: Rc1/2 | Inlet: Rc1/4 Outlet: Rc1/2 |
| 1kg/h | ||
 | ||
| Inlet: Clip On Connector Outlet: Quick Coupling Adapter | ||
| 10kg/h | 10kg/h |
|---|---|
 |  |
| Inlet: Rc1/2 Outlet: Rc3/4 Union | Inlet: Rc1/2 Outlet: Rc3/4 Ball Valve for Union |
| 20kg/h | 20kg/h |
 |  |
| Inlet: JIS20K15A Flange Outlet: Rc1 Union | Inlet: JIS20K15A Flange Outlet: Rc1 Ball Valve for Union |
| 50kg/h | 50kg/h |
 |  |
| Inlet: JIS20K25A Flange Outlet: Rc1 1/4 Union | Inlet: JIS20K25A Flange Outlet: Rc1 1/4 Ball Valve for Union |
| 70kg/h | 70kg/h |
 |  |
| Inlet: JIS20K25A Flange Outlet: Rc1 1/4 Union | Inlet: JIS20K25A Flange Outlet: Rc1 1/4 Ball Valve for Union |
| 100kg/h | 100kg/h |
 |  |
| Inlet: JIS20K25A Flange Outlet: Rc1 1/2 Union | Inlet: JIS20K25A Flange Outlet: Rc1 1/2 Ball Valve for Union |
| 200kg/h | |
 | |
| Inlet: JIS20K40A Flange Outlet: Rc2 Union | |
