Manufacturer: I.T.O Corporation

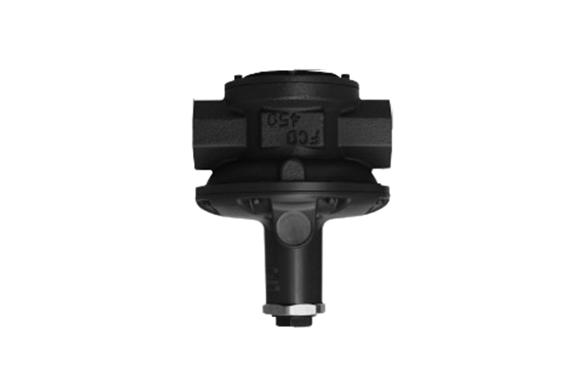

Model: SGX-ZT/ Z Range

Equalizing regulators can regulate the outlet pressure regardless of changes of condition and gas flow of the inlet pressure. By adding air pressure (loading pressure) from the vent in the cover, the outlet pressure is in proportion to loading pressure. By installing together with other equipment and/or appliances, this product keeps a constant mixture ratio of air and gas, and this can make it easy to control combustion temperature automatically.

Specifications

* No lockup function type and high temperature resistance for COG type are also available. Please refer to page 41 for details of available configurations and options.
*Please use air for loading.

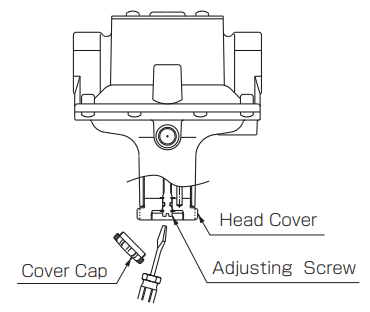

With External Adjusting Knob

SGX-ZT range has an external knob fitted on the cover cap to make small adjustments to the set point without removing the head cover thus keeping the original loading pressure sealed in the cover.

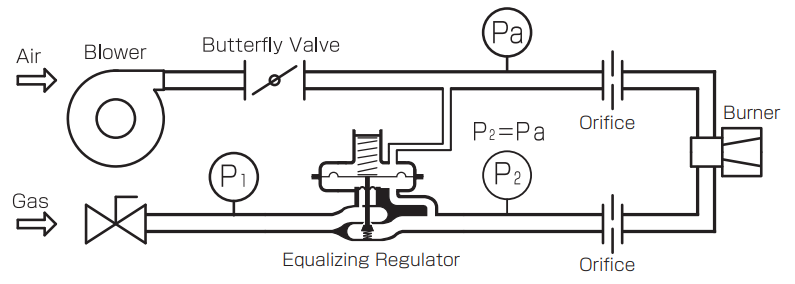

Gas Mixing by Equalizing Regulator

The equalizing regulator keeps the upstream pressure of the orifices on the gas line as the same as an air line by loading the air to the regulator cover vent from the air line. It fixes the air ratio to be mixed. The regulator maintains constant air and gas ratio even if the amount of air changes due to the opening and closing of the butterfly valve.
