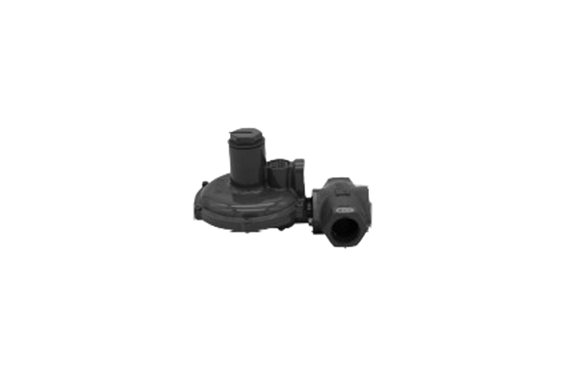

Manufacturer: I.T.O Corporation
Model: WGX Range
- The WGX range is a direct-operated governor from medium pressure to low pressure.
- The ITO Air Stabiliser Rubber (vent rubber) gives quick responses.
- Easy maintenance, flexible mounting position, offers a wide range of applications.
Specifications
| Model | WGX-20 | WGX-25 | WGX-25-2 |
|---|
| Maximum Flow Rate | 64m³/h(normal) | 65m³/h(normal) | 58m³/h(normal) | 69m³/h(normal) |
|---|
| Inlet Pressure(kPa) | 0.03~0.40MPa | 0.05~0.10MPa | 0.10~0.15MPa |
|---|
| Outlet Pressure(kPa) | 2.00~10.0 *1 |
|---|
| Lockup Pressure(kPa) | ≤Set Point×1.25kPa |
|---|
| Connection | Rc3/4 | Rc1 |
|---|
*1 Interchangeable springs are available.
