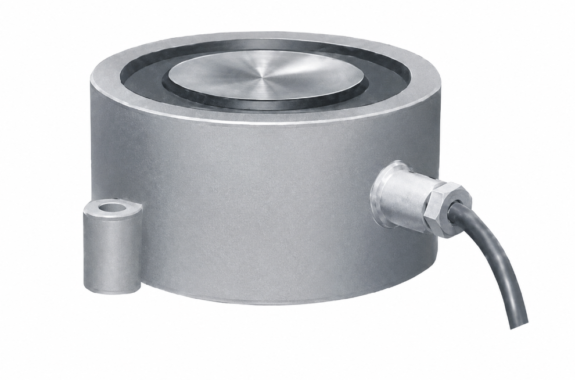

Kanetec EMA WELDING JIG FOR ONE FACE WELDING
Product Made in Japan
Manufacturer: Kanetec
Model: EMA (EMA-25-A,EMA-25-C,EMA-26-A,EMA-30-A,EMA-30-C)
Application
Jigs are the tools for the automatic welding of steel plates to hold steel plates and backing materials. These jigs are useful to hold cut-out pieces during EPM welding operations. They also straighten workpieces and securely stacked steel plates during the fusing of stacked steel plates.
Features
- Holding and releasing workpieces can be controlled electrically.
- Workpieces are secured to a welding frame by a strong magnetic force and therefore warping of steel plates due to welding heat can be prevented.
- Drip-proof construction for outdoor operations. Highly resistant to impact and heat.
Specifications
| Model | Holding Power | Dimensions | |||||
| Steel Plate 20mm thick | Steel Plate 50mm thick | D | H | d1 | b | Mounting hole | |
| EMA-25-A | 20kN (2000kgf) | 24kN (2400kgf) | 245 (9.64) | 100(3.93) | 290(11.4) | 70 （2.75） | 3-ф21 (0.82) |
| EMA-25-C | 150(5.9) | 3-M16 (0.62) | |||||
| EMA-26-A | 21kN (2100kgf) | 36kN (3600kgf) | 255 (10.0) | 120(4.72) | 305(12.0) | 4- ф26 (1.02) | |
| EMA-30-A | 25kN (2500kgf) | 50kN (5000kgf) | 296 (11.6) | 340(13.3) | 3-ф23 (0.90) | ||
| EMA-30-C | 150(5.9) | 200(7.87) | 3-M20 (0.78) | ||||
| Model | Power Source | Working Rate | Mass | |
| Voltage | Current | |||
| EMA-25-A | 200 VDC | 1.0 A | 100% ED | 30kg/66.1 lb |
| EMA-25-C | ||||
| EMA-26-A | 1.4 A | 40kg/88.1 lb | ||
| EMA-30-A | 1.75A | 65kg/143 lb | ||
| EMA-30-C | ||||
※The rectifier is of special specifications according to the number of magnets used.
