Kanetec KYB Square Type Block

Product Made in Japan
Manufacturer: Kanetec
Model: KYB

Application

Holding tools for marking and light duty machining.
Holding tools for three-dimensional measuring
instruments and various measuring systems.

Features

A workpieces can be held on one face of the top (V face).
The ON/OFF lever is detachable. (The length of the opposite sides of the hex hole is 8 mm.)
Drip-proof and oil-resistant construction.
Ultra-precision finishing is also available. Please contact us.

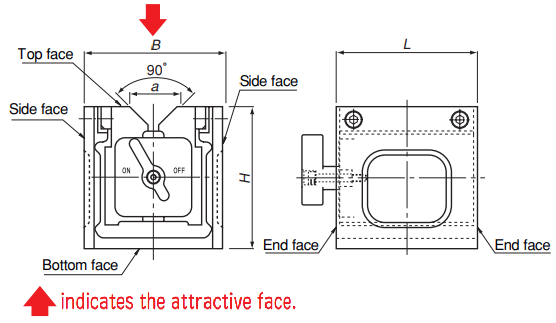

Dimensions

KYB

Specifications

Model	Holding Power	Applicable Diameter	Dimension				Mass (kg/lb)
Model	Holding Power	Applicable Diameter	B	H	L	a	Mass (kg/lb)
KYB-8A	180N (18kgf) or over.	φ10 (0.39) → φ32 (1.25)	80 (3.14)	80 (3.14)	80 (3.14)	29 (1.02)	2.5kg / 5.5lb
KYB-10A	343N (35kgf) or over.	φ13 (0.51) → φ50 (1.96)	100 (3.93)	100 (3.93)	100 (3.93)	40 (1.57)	6kg / 13lb
KYB-13A	400N (40kgf) or over.	φ13 (0.51) → φ50 (1.96)	125 (4.92)	125 (4.92)	125 (4.92)	40 (1.57)	8kg / 17lb
KYB-15A	589N (60kgf) or over.	φ14 (0.55) → φ66 (2.59)	150 (5.90)	150 (5.90)	150 (5.90)	50 (1.96)	12kg / 26lb
KYB-18A	600N (60kgf) or over.		180 (7.08)	180 (7.08)	180 (7.08)		16kg / 35lb
KYB-20A	785N (80kgf) or over.		200 (7.87)	200 (7.87)	200 (7.87)		22kg / 48lb

※The holding power is based on the V face and φ20 round steel bar.
※For accuracy, see the table below.

KYB accuracy

Mode-Accuracy		KYB-8A		KYB-10A		KYB-13A		KYB-15A		KYB-18A		KYB-20A
		Standard	Special	Standard	Special	Standard	Special	Standard	Special	Standard	Special	Standard	Special
Parallelism	Bottom face to top face	10	7	10	7	15	8	15	8	20	9	20	9
	Bottom face to V face
	End face to end face					12		12		15		15
	Side face to V face	20		20		25		25		30		30
Flatness of bottom face		10		10		15		15		20		20
Squareness	Bottom face to side face	20	10	20	10	25	12	25	12	30	14	30	14

The dimensional accuracy of KYA and KYB is based on KANETEC in-house standards. If you require higher accuracy, please contact us.
