Japan, Kanetec

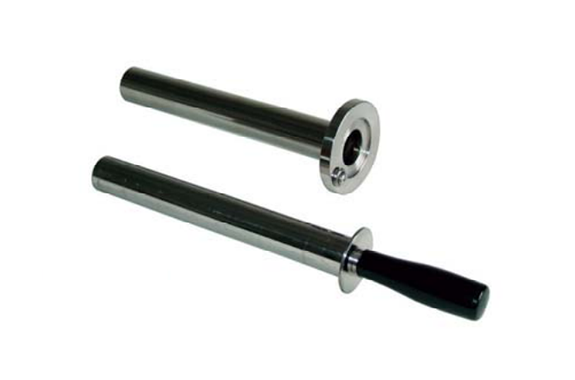

Kanetec PCMBD-A Super Powerful Magnetic Bar (Double-Pipe)
Product Made in Japan
Manufacturer: Kanetec
Model: PCMBD-A (PCMBD-A20)
Application
Most suitable for cleaning places where a relatively large amount of iron powder, etc. is mixed.
Feature
Since these bars are of double-pipe type, attracted iron powder smoothly drops when the magnetic bar is pulled out.
The outer pipe and the magnetic bar have a flange. When the magnetic bar is housed, the two flanges become one piece to prevent intrusion of foreign matter to the inside of the magnetic bar and to prevent the magnetic bar from coming out.
The magnetic bar has an easy-to-hold plastic grip.
Dimensions
Specifications
| Model | Surface Material | Surface Finish | Surface Max. Magnetic Flux Density | Working Temp. Upper Limit | Dimensions | Mass | |||
| L | ℓ | G | D | ||||||
| PCMBD-A13 | SUS 304 | #400 buffed | 0.8 T (8000 G) min. | 80°C (176°F) | 216 (8.50) | 125 (4.92) | 83 (3.26) | 24 (0.94) | 0.8kg / 1.7 lb |
| PCMBD-A20 | SUS 304 | #400 buffed | 0.8 T (8000 G) min. | 80°C (176°F) | 285 (11.2) | 194 (7.63) | 83 (3.26) | 24 (0.94) | 1.1kg / 2.4 lb |
| PCMBD-A25 | SUS 304 | #400 buffed | 0.8 T (8000 G) min. | 80°C (176°F) | 352 (13.8) | 244 (9.60) | 100 (3.93) | 28 (1.10) | 1.3kg / 2.8 lb |
| PCMBD-A30 | SUS 304 | #400 buffed | 0.8 T (8000 G) min. | 80°C (176°F) | 403 (15.8) | 295 (11.6) | 100 (3.93) | 28 (1.10) | 1.5kg / 3.3 lb |
A type having a surface magnetic flux density if 0.95T(9500G) is also available.(Optional)
