Japan, Kanetec

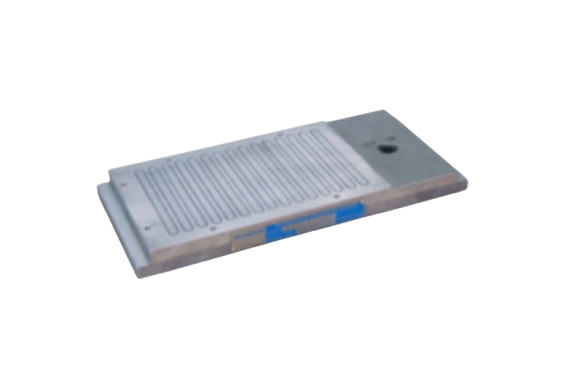

Kanetec RTH Super Thin Rectangular Permanent Magnetic Chuck
Product Made in Japan
Manufacturer: Kanetec
Model: RTH
Features
Very thin and lightweight chucks designed for wire electric discharge machining and high-speed light-duty grinding.
Made of stainless steel for rust prevention and complete waterproof construction. The magnetic force can of course be turned on and off.
All models are as thin as 20 mm.
| [mm(in)] | ||||
| Model | Nominal Dimensions | Height | Pole Pitch | Mass |
| RTH-713A | 70(2.75) x 130(5.11) | 20(0.78) | 10 (1+5+1+3) (0.39) |
1.8kg/3.9lb |
| RTH-1118A | 110(4.33) x 180(7.08) | 3.5kg/7.7lb | ||
| RTH-1515A | 150(5.90) x 150(5.90) | 4.2gk/9.2lb | ||
Kouei is Distributor/Agent of Kanetec.
