Kitagawa Corporation.

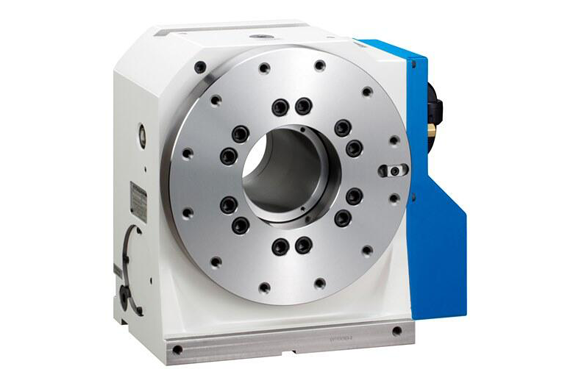

Kitagawa GT Series NC Rotary Table
Manufacturer: Kitagawa Corporation.
Model: GT Series
Feature:
The NC rotary table is perfect for heavy machining tasks. It delivers very strong clamping torque. This is possible because the piston area is larger. Moreover, the new clamping mechanism boosts clamping power even more.
As a result, the NC rotary table offers stable and reliable performance. In addition, the rigid body structure supports heavy-duty cutting. Therefore, you can achieve faster machining and shorter tact time.
Furthermore, the NC rotary table includes a built-in rotary joint. This makes setup easier and more flexible.
Finally, CE-compliant models of the NC rotary table are available. These models meet safety and international standards.
Specification
| Model | GT200 | GT250 | GT320 | ||
|---|---|---|---|---|---|
| Right-handed Type | ○ | ○ | ○ | ||
| Left-handed Type | ○ | ○ | ○ | ||
| Table Diameter (mm) | ø200 | ø250 | ø320 | ||
| Centre Hole Diameter (mm) | ø65H7 | ø100H7 | ø130H7 | ||
| Through Hole Diameter (mm) | ø45 | ø70 | ø105 | ||
| Centre Height (mm) | 140 | 180 | 225 | ||
| Clamping Torque (N･m) (at 0.5 MPa) | 820 | 1600 | 2800 | ||
| Motor Axis Reduced Inertia (kg･m2) | 0.00023 | 0.00036 | 0.00039 | ||
| Servomotor (for Fanuc spec.) | αiF 4/5000-B | αiF 4/5000-B | αiF 8/3000-B | ||
| Total Reduction Ratio | 1/72 | 1/90 | 1/120 | ||
| Max. Rotation Speed (min-1) | 4th axis spec. (Fanuc spec.) | 41.6 (at motor 3000min-1) | 33.3 (at motor 3000min-1) | 25 (at motor 3000min-1) | |
| M signal spec. | 41.6 (at motor 3000min-1) | 33.3 (at motor 3000min-1) | 16.6 (at motor 2000min-1) | ||
| Allowable Work Inertia (kg･m2) | 1.00 | 1.95 | 4.49 | ||
| Indexing Accuracy (sec) | 20 | 20 | 20 | ||
| Repeatability (sec) | 4 | 4 | 4 | ||
| Mass of Product (kg) | 65 | 87 | 145 | ||
| Allowable Load | Horizontal (kg) | 200 | 250 | 350 | |
| Vertical (kg) | 100 | 125 | 180 | ||
| Manual Tailstock (as an option) | MR200RN | MR250RN | MR320RN | ||
| Tail Spindle (as an option) | MSR142A/TSR142A | MSR181A/TSR181A | TSR181A45 | ||
| Rotary Joint (as an option) | RJ40H20J01 4-way hydraulic/pneumatic supply | RJ70H25J01 Six-channel hydraulic/pneumatic input/output | RJ70H32J01 Hydraulic/Pneumatic 6 ports | ||
