Kitagawa S-L Series Rotary Cylinder
Manufacturer: Kitagawa Corporation.
Model: S-L series
Feature:
Long piston stroke
Large through-hole, compact and light weight
Built-in check valve and relief valve
*CE correspondence
Specification
| Model | S1246L | S1552L | S1875L | S2091L | |
|---|---|---|---|---|---|
| Though Hole Diameter (mm) | 46 | 52 | 75 | 91 | |
| Piston Stroke (mm) | 32 | 34 | 40 | 50 | |
| Piston Area (cm2) | Push Side | 100 | 161 | 198 | 252 |
| Pull Side | 89 | 150 | 183 | 234 | |
| Draw Bar Thrust (kN) | Push Side | 38 | 60 | 74 | 94 |
| Pull Side | 33 | 56 | 69 | 88 | |
| Max. Operation Pressure (MPa) | 4 | 4 | 4 | 4 | |
| Max. Speed (min-1) | 7000 | 6200 | 4700 | 3800 | |
| Moment of Inertia (kg･m2) | 0.022 | 0.058 | 0.1 | 0.16 | |
| Total Leakage (L/min) | 3.0 | 3.9 | 4.2 | 4.5 | |
| Net Weight (kg) | 12.8 | 17.0 | 26.8 | 34.1 | |

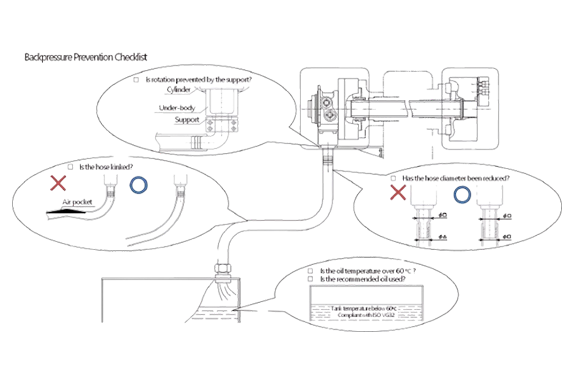

Please install the return piping so that backpressure does not occur, referring to the following checklist. Click on the image to enlarge it.
