KITAGAWA SS series Rotary Cylinder

Made in Japan

Manufacturer: Kitagawa

Model: SS series

Feature:

Accommodates BB200 and B-200 series

The compact design maximises lathe performance.

Compact: 30% reduction in length of conventional models.

Speed increased.

Can operate one size larger chuck due to increased pull force.

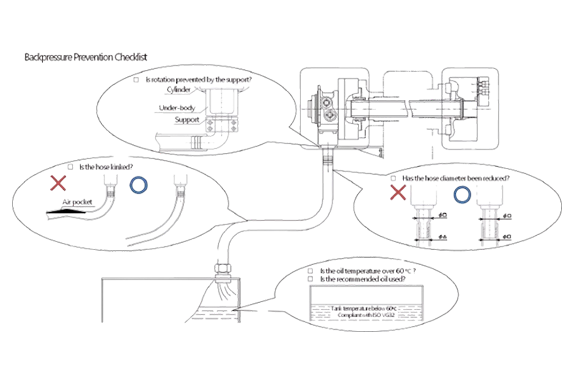

Built-in check valve and relief valve

*CE correspondence

(Only models with stroke confirmation device)

Specification

Model SS1246K SS1452K SS1453K SS1666K
Though Hole Diameter (mm) 46 52 53 66
Piston Stroke (mm) 16 22 22 25
Piston Area (cm2) Push Side 102.8 133.0 133.0 165.9
Pull Side 91.5 122.6 122.6 153.1
Draw Bar Thrust (kN) Push Side 43.6 56.5 56.5 70.6
Pull Side 38.9 52.1 52.1 65
Max. Operation Pressure (MPa) 4.5 4.5 4.5 4.5
Max. Speed (min-1) 8000 6500 6500 5600
Moment of Inertia (kg・m2) 0.017 0.031 0.031 0.065
Total Leakage (L/min) 3.0 3.9 3.9 4.0
Net Weight (kg) 8.0 13.0 13.0 19.0
Model SS1775K SS1881K SS2110K
Though Hole Diameter (mm) 75 81 106
Piston Stroke (mm) 25 25 30
Piston Area (cm2) Push Side 166.5 187.1 229.6
Pull Side 152.1 171.9 219.6
Draw Bar Thrust (kN) Push Side 70.7 79.5 74.7
Pull Side 64.6 73.1 71
Max. Operation Pressure (MPa) 4.5 4.5 3.5
Max. Speed (min-1) 5500 4800 3500
Moment of Inertia (kg・m2) 0.061 0.087 0.197
Total Leakage (L/min) 4.2 4.3 6.0
Net Weight (kg) 18.5 24.0 37.0
