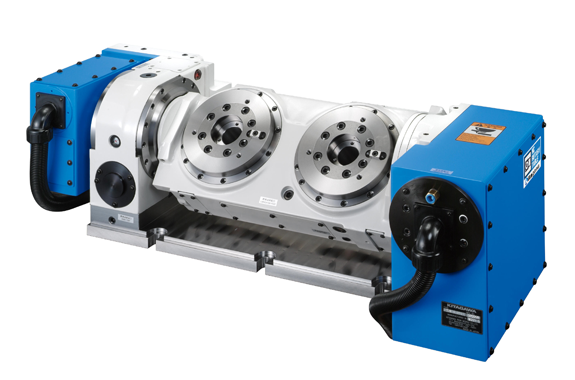

KITAGAWA TW2180 NC Rotary Table

Made in Japan

Manufacturer: Kitagawa

Model: TW2180

Feature:

Mountable to a compact M/C

Smallest width in its class 999 mm

Built-in rotary (option) joint allows simple and secure jig piping

High clamping torque

*CE correspondence

*Since 2 additional axis controlled NC rotary tables fall under the list controlled items of Export Trade Control Ordinance of Japan, Permission for Export by the Ministry of Economy, Trade and Industry is required before exporting from Japan.

Specification

Model TW2180
Tilting Angle Range -110°~+110°
Table Diameter (mm) ø180
Centre Hole Diameter (mm) ø65H7
Through Hole Diameter (mm) ø40
Distance between Axes (mm) 250
Centre Height (mm) 200
Clamping Method Rotating axis Pneumatic
Tilting axis Air-hydraulic
Clamping Torque (N·m)
(at 0.5 MPa)
Rotating axis 400
Tilting axis 800
Motor Axis Reduced Inertia (kg·m2) Rotating axis 0.000383
Tilting axis 0.00035
Servomotor (for Fanuc spec.) αiF 2/5000-B
Total Reduction Ratio Rotating axis 1/90
Tilting axis 1/180
Max. Rotation Speed
(min-1)
Rotating axis 33.3
(at motor 3000min-1)
Tilting axis 16.6
(at motor 3000min-1)
Allowable Work Inertia (kgm2) 0.12
Indexing Accuracy (sec) Rotating axis 30
Tilting axis 60
Repeatability (sec) 4
Mass of Product (kg) 247
Allowable Load at horizontal (kg) 30 per 1 rotating axis
at 90˚ tilted (kg) 30 per 1 rotating axis
Built-in Rotary Joint (as an option) RJ40TW2180
2 Hydraulic/Pneumatic ports + 3 Pneumatic dedicated ports per 1 rotating axis
