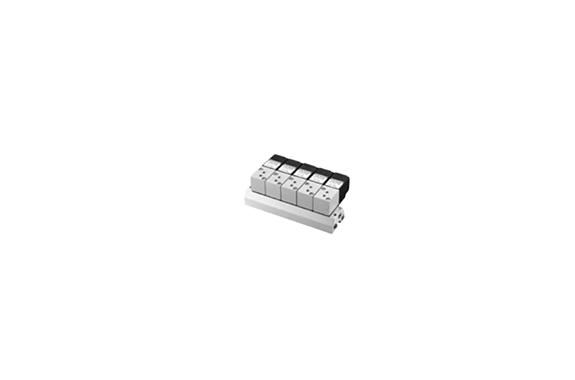

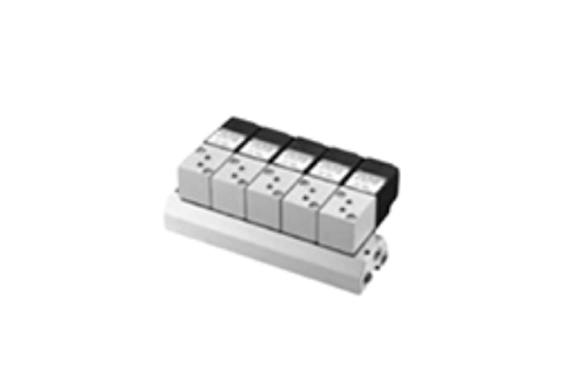

The poppet-type 2/3 port solenoid valve is designed for high reliability and durability. It is perfect for controlling cylinders with diameters ranging from 6 to 25 mm [0.236 to 0.984 in]. This valve ensures optimal performance and longevity, making it ideal for various industrial applications requiring efficient cylinder operation.
Specifications
| Item | Basic model | ||
|---|---|---|---|
| CS-050E1 | CS-050-4E1 | CS-050-4LE1 | |
| For direct piping SM type manifold | For sub-base mounted unit | ||
| Number of positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 2, 3 ports | 5 ports | 2, 3 ports |
| Valve function | Normally closed (NC, standard) or Normally open (NO, optional) | Single solenoid | Normally closed (NC, standard) or Normally open (NO, optional) |
| Media | Air | Air | Air |
| Operation type | Direct acting type | Direct acting type | Direct acting type |
| Effective area (Cv) | 1.2 [0.07] | 1.5 [0.08] | 1.2 [0.07] |
| Port size | M5×0.8 | M5×0.8 | M5×0.8 |
| Lubrication | Not required | Not required | Not required |
| Operating pressure range | 0~0.7 MPa [0~102 psi] | 0~0.7 MPa [0~102 psi] | 0~0.7 MPa [0~102 psi] |
| Proof pressure | 1.05 [152 psi] | 1.05 [152 psi] | 1.05 [152 psi] |
| Response time | DC24V: 20/20 ms, AC100V, AC200V: 25/25 ms or below | 20/20 ms or below | 30/30 ms or below |
| ON/OFF | DC24V: 20/20 ms, AC100V, AC200V: 25/25 ms or below | 25/25 ms or below | 30/30 ms or below |
| Maximum operating frequency | 5 Hz | 5 Hz | 5 Hz |
| Operating temperature range (atmosphere and media) | 0~50°C [32~122°F] | 0~50°C [32~122°F] | 0~50°C [32~122°F] |
| Shock resistance | 137.3 m/s² [140 G] | 137.3 m/s² [140 G] | 137.3 m/s² [140 G] |
| Mounting direction | Any | Any | Any |
