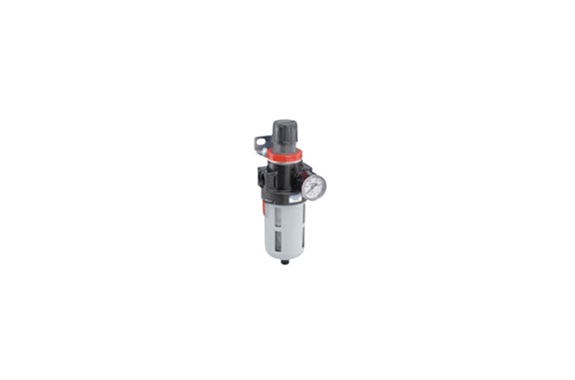

Koganei Clean System Filter Regulators CS-FR150, CS-FR300, CS-FR600
Manufacturer: KOGANEI CORPORATION
Features
This unit features a 5 µm air filter and regulator, all incorporated into a compact configuration for easy installation. Additionally, a preset marker pressure gauge is included as standard, providing clear and reliable pressure readings. Furthermore, you have the option to select either a drain cock with fitting or an auto drain cock, offering flexibility based on your needs.
Specifications
| Item | Model | CS-FR150 | CS-FR300 | CS-FR600 |
|---|---|---|---|---|
| Media | Air | |||
| Port size | Rc | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8, 1/2 |
| Filtration rating | μm | 5 | 5 | 5 |
| Pressure setting range | MPa [psi] | 0.05~0.83 [7~120] | 0.05~0.83 [7~120] | 0.05~0.83 [7~120] |
| Maximum operating pressure | MPa [psi] | 0.93 [135] | 0.93 [135] | 0.93 [135] |
| Proof pressure | MPa [psi] | 1.47 [213] | 1.47 [213] | 1.47 [213] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] |
| Drain capacity | cc [in³] | 15 [0.92] | 55 [3.36] | 90 [5.49] |
| Mass (with pressure gauge) kg [lb.] | Standard | 0.28 [0.62] | 0.29 [0.64] | 0.46 [1.01] |
| Materials | Body | Aluminum die-casting | Zinc die-casting | Aluminum die-casting |
| Bowl | Polycarbonate | Polycarbonate | Polycarbonate | |
| Standard attachments | Bracket, push type drain cock with fitting | Bracket, screw type drain cock with fitting, bowl guard | Bracket, screw type drain cock with fitting, bowl guard | |
