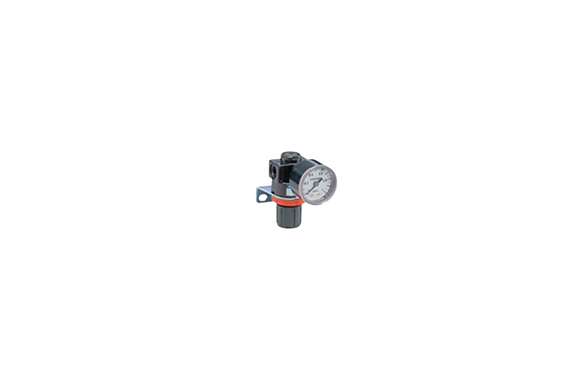

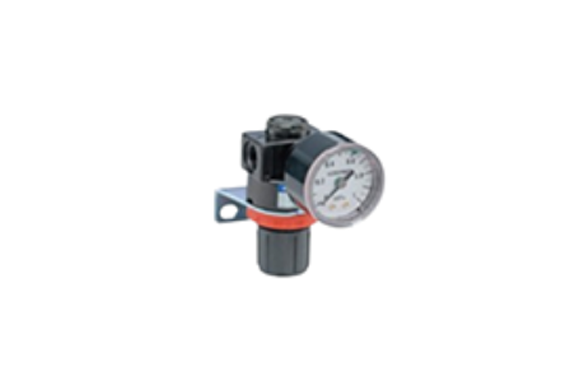

Koganei CS-R Series Regulators
Manufacturer: KOGANEI CORPORATION
Model: CS-R Series
Features
This compact unit delivers exceptional performance by incorporating a stable pressure regulator. Consequently, users benefit from precise control because we include preset markers as a standard feature.
Furthermore, you can customize your setup to meet specific operational needs. You can choose from our standard pressure specification, an integrated check mechanism, or a specialized low-pressure specification. Because we offer these diverse options, this regulator adapts perfectly to a wide range of industrial applications.
Specifications
| Item | Model | ||
|---|---|---|---|
| CS-R150 | CS-R300 | CS-R600 | |
| Media | Rc | Air | Air |
| Port size | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8, 1/2 |
| Pressure setting range | 0.05~0.83 MPa [7~120 psi] | 0.05~0.83 MPa [7~120 psi] | 0.05~0.83 MPa [7~120 psi] |
| Maximum operating pressure | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] |
| Proof pressure | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] |
| Operating temperature range (atmosphere and media) | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Lubrication | Not required | Not required | Not required |
| Mass (with pressure gauge) kg [lb] | 0.20 [0.44] | 0.23 [0.51] | 0.32 [0.71] |
| Materials | Body: Aluminum die-casting, Bowl: Polycarbonate | Body: Zinc die-casting, Bowl: Polycarbonate | Body: Aluminum die-casting, Bowl: Polycarbonate |
| Standard attachments | Bracket and pressure gauge G1-40 (φ40×1MPa [145psi]) | Bracket and pressure gauge G1-50 (φ50×1MPa [145psi]) | Bracket and pressure gauge G1-50 (φ50×1MPa [145psi]) |
