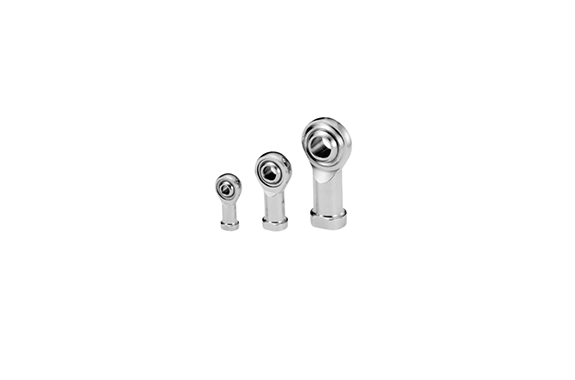

Koganei Cylinder Rod End
Manufacturer: KOGANEI CORPORATION
Features
Eleven types are available by thread size.
Suitable for φ6 [0.236 in.] ~ φ100 [3.940 in.] bore cylinders.Because it uses a fluoro plastic liner, no lubrication is required and it is maintenance-free.
Specifications
| Model | Item Thread size | Applicable cylinder and bore size | The max. cylinder thrust of applicable cylinder at 0.97 MPa N [lbf.] | Limit load (Note 1) | Allowable radial static load N [lbf.] | Mass g [oz.] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pen | Multi mount | Jig C (male thread specification · B) | Slim | Twinport | DYNA | Radial load N [lbf.] | Axial load N [lbf.] | |||||
| CRE-3 × 0.5 | M3 × 0.5 | 6 | 6 | 6 | — | — | — | 27.5 [6.2] | 1380 [310.2] | 660 [148.4] | 1700 [382.2] | 10 [0.35] |
| CRE-4 × 0.7 | M4 × 0.7 | 10 | 10 | 8, 10 | — | — | — | 76.5 [17.2] | 2450 [550.8] | 1080 [242.8] | 2500 [562.2] | 12 [0.42] |
| CRE-5 × 0.8 | M5 × 0.8 | 16 | 16 | 16 | — | — | — | 195.2 [43.9] | 5860 [1317] | 2250 [505.8] | 6600 [1933.4] | 18 [0.63] |
| CRE-6 × 1 | M6 × 1 | — | 16 | 16 | — | — | — | 195.2 [43.9] | 6860 [1542.3] | 9800 [2203.2] | 23 [0.81] | |
| CRE-8 × 1 | M8 × 1 | — | 20 | 20, 25 (Note 2) | 20 | 25 | — | 475.6 [106.9] | 7840 [1762.3] | 2940 [661.0] | 11800 [2652.7] | 45 [1.59] |
| CRE-10 × 1.25 | M10 × 1.25 | — | 25 | 25, 32 | 25 | 32 | — | 780.6 [175.5] | 10290 [2313.3] | 3820 [858.8] | 15200 [3417.3] | 76 [2.68] |
| CRE-12 × 1.25 | M12 × 1.25 | — | — | 32 | — | 40 | — | 3026.3 [680.3] | 20240 [4547.0] | 4900 [1101.1] | 31900 [4293.9] | 105 [3.70] |
| CRE-14 × 1.5 | M14 × 1.5 | — | — | 32, 40 | 40, 50, 63 | 40 | — | 3026.3 [680.3] | 16660 [3745.2] | 6370 [1432.1] | 25200 [5620.2] | 158 [5.57] |
| CRE-18 × 1.5 | M18 × 1.5 | — | — | 50, 63 | — | — | — | 3026.3 [680.3] | 24990 [5615.4] | 9310 [2093] | 37200 [8362.9] | 269 [9.49] |
| CRE-22 × 1.5 | M22 × 1.5 | — | — | 80 | — | — | — | 6170.7 [1386.6] | 30240 [6807.2] | 13120 [2949.7] | 59000 [15646.7] | 516 [18.76] |
| CRE-26 × 1.5 | M26 × 1.5 | — | — | 100 | — | — | — | 7826.7 [1717.4] | 44100 [9914.1] | 27730 [6234] | 96000 [21577.7] | 673 [23.74] |
