Manufacturer: KOGANEI CORPORATION

Features

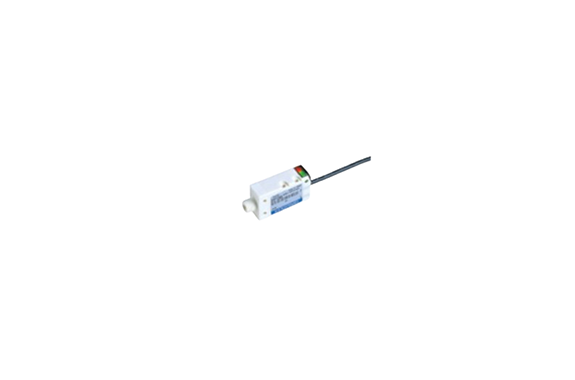

This solid-state switch is highly reliable and responsive, offering precision and enhanced performance with an accuracy of ±3% F.S. Additionally, its three-directional mounting feature provides excellent flexibility for layout design, making it adaptable to a wide range of setups.

The output specifications are available in two types, offering flexibility for different use cases. The PS410 and PS420 models provide a 2-output (fixed hysteresis) type with two selectable pressure settings. On the other hand, the PS410A and PS420A models offer a 1-output (variable hysteresis) with an analog output type, allowing continuous measurement.

Specifications

Item	Vacuum	Positive pressure	Vacuum	Positive pressure
Model	PS410	PS420	PS410A	PS420A
Pressure range	0 ~ 100kPa [-29.54inHg]	0 ~ 1MPa [145psi]	0 ~ 100kPa [-29.54inHg]	0 ~ 1MPa [145psi]
Rated pressure	100kPa [29.54inHg]	1MPa [145psi]	100kPa [29.54inHg]	1MPa [145psi]
Maximum pressure	200kPa [29.0psi]	1.5MPa [218psi]	200kPa [29.0psi]	1.5MPa [218psi]
Breaking pressure	500kPa [72.5psi]	2.0MPa [290psi]	500kPa [72.5psi]	2.0MPa [290psi]
Operating temperature	-20~+70°C [-4~+158°F]	-20~+70°C [-4~+158°F]	-20~+60°C [-4~+140°F]	-20~+60°C [-4~+140°F]
Compensation temperature	-20~+50°C [-4~+122°F]	-20~+50°C [-4~+122°F]	-20~+50°C [-4~+122°F]	-20~+50°C [-4~+122°F]
Storage temperature	-20~+80°C [-4~+176°F]	-20~+80°C [-4~+176°F]	-20~+80°C [-4~+176°F]	-20~+80°C [-4~+176°F]
Applicable media	Air or non-corrosive gas	Air or non-corrosive gas	Air or non-corrosive gas	Air or non-corrosive gas
Insulation resistance	100MΩ MIN. (at DC500V megger)	100MΩ MIN. (at DC500V megger)	100MΩ MIN. (at DC500V megger)	100MΩ MIN. (at DC500V megger)
Dielectric strength	AC500V, 1 minute	AC500V, 1 minute	AC500V, 1 minute	AC500V, 1 minute
Cable	Shielded 4-lead	Shielded 4-lead	Shielded 4-lead	Shielded 4-lead
Mass	50g [1.76oz]	50g [1.76oz]	50g [1.76oz]	50g [1.76oz]
Voltage	DC10.8~30V (including ripple)	DC10.8~30V (including ripple)	DC10.8~30V (including ripple)	DC10.8~30V (including ripple)
Consumption current	25mA or less	17mA or less	25mA or less	17mA or less
Number of outputs	2	1	2	1
Output method	NPN open collector	NPN open collector	NPN open collector	NPN open collector
Pressure setting method	Variable, with use of trimmer	Variable, with use of trimmer	Variable, with use of trimmer	Variable, with use of trimmer
Pressure setting range	0~100% of the rated pressure	0~100% of the rated pressure	0~100% of the rated pressure	0~100% of the rated pressure
Output display	When ON, operation indicator (LED) lights up.	When ON, operation indicator (LED) lights up.	When ON, operation indicator (LED) lights up.	When ON, operation indicator (LED) lights up.
Accuracy	±3% F.S. or less	±3% F.S. or less	±3% F.S. or less	±3% F.S. or less
Hysteresis	2% F.S. or less (fixed)	2% F.S. or less (fixed)	2% F.S. or less (fixed)	2% F.S. or less (fixed)
Switch capacity	DC30V, 80mA MAX.	DC30V, 80mA MAX.	DC30V, 80mA MAX.	DC30V, 80mA MAX.
Residual voltage	0.8V or less (at inrush current 80mA)	0.8V or less (at inrush current 80mA)	0.8V or less (at inrush current 80mA)	0.8V or less (at inrush current 80mA)
Response speed	1ms (reference value)	1ms (reference value)	1ms (reference value)	1ms (reference value)
Output voltage	1~5V	1~5V	1~5V	1~5V
Zero-point voltage	0.5V±5% F.S.	0.5V±5% F.S.	0.5V±5% F.S.	0.5V±5% F.S.
Span voltage	4±0.1V	4±0.1V	4±0.1V	4±0.1V
Vibration resistance	98.1m/s² [10G]	98.1m/s² [10G]	98.1m/s² [10G]	98.1m/s² [10G]
Shock resistance	490m/s² [50G] (Non-repeated shock)	490m/s² [50G] (Non-repeated shock)	490m/s² [50G] (Non-repeated shock)	490m/s² [50G] (Non-repeated shock)
Continuous operation	10⁶ times MIN. (0~rated pressure)	10⁶ times MIN. (0~rated pressure)	10⁶ times MIN. (0~rated pressure)	10⁶ times MIN. (0~rated pressure)
Humidity resistance	90~95% RH 240 hours (40°C [104°F])	90~95% RH 240 hours (40°C [104°F])	90~95% RH 240 hours (40°C [104°F])	90~95% RH 240 hours (40°C [104°F])
