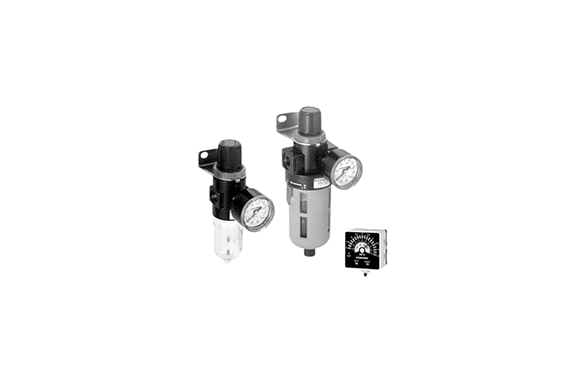

The filter regulators, including models like FR150, FR300, and FR600, are highly efficient and offer great versatility. They combine a 5µm air filter and a compact regulator into a single body. Additionally, these regulators come with a pressure gauge that includes a preset marker as a standard feature. Furthermore, there are low-pressure models available, along with versions that have a built-in check mechanism. To enhance usability, the series also offers optional drain cock fittings, along with auto-drain type drain cocks for added convenience.
Specifications
| Item | Standard type | Low pressure type | Built-in check mechanism type |
|---|---|---|---|
| Model | FR150 | FR300 | FR600 |
| Port size | Rc 1/8 | Rc 1/4 | Rc 1/4, 3/8 |
| Media | Air | Air | Air |
| Filtration rating | 5 μm | 5 μm | 5 μm |
| Pressure setting range | 0.05~0.83 MPa [7~120 psi] | 0.05~0.25 MPa [7~36 psi] | 0.05~0.25 MPa [7~36 psi] |
| Maximum operating pressure | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] |
| Proof pressure | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] |
| Operating temperature range (atmosphere and media) | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Drain capacity | 15 cc [0.92 in³] | 55 cc [3.36 in³] | 95 cc [5.49 in³] |
| Mass (with pressure gauge) | 0.46 kg [1.01 lb] | 0.61 kg [1.32 lb] | 0.64 kg [1.41 lb] |
| Auto drain type | — | — | — |
| Body | Aluminum die-casting | Zinc die-casting | Aluminum die-casting |
| Bowl | Polycarbonate | Polycarbonate | Polycarbonate |
| Models of components | Air filter: F150 | Air filter: F300 | Air filter: F600 |
| Standard attachments | Push type drain cock | Screw type drain cock, bowl guard | Screw type drain cock, bowl guard |
| Standard attachments | Pressure gauge G1-40 (φ 40×1 MPa [145psi.]) | Pressure gauge G3-40 (φ 40×0.3 MPa [44psi.]) | Pressure gauge G3-40 (φ 40×0.3 MPa [44psi.]) |
| Model | FR301 | FR302 | FR601 |
| Port size | Rc 1/4 | Rc 1/4, 3/8 | Rc 1/4 |
| Media | Air | Air | Air |
| Filtration rating | 5 μm | 5 μm | 5 μm |
| Pressure setting range | 0.05~0.25 MPa [7~36 psi] | 0.05~0.25 MPa [7~36 psi] | 0.05~0.25 MPa [7~36 psi] |
| Maximum operating pressure | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] |
| Proof pressure | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] |
| Operating temperature range (atmosphere and media) | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Drain capacity | 55 cc [3.36 in³] | 95 cc [5.49 in³] | 95 cc [5.49 in³] |
| Mass (with pressure gauge) | 0.61 kg [1.32 lb] | 0.64 kg [1.41 lb] | 0.64 kg [1.41 lb] |
| Auto drain type | — | — | — |
| Body | Zinc die-casting | Aluminum die-casting | Aluminum die-casting |
| Bowl | Polycarbonate | Polycarbonate | Polycarbonate |
| Models of components | Air filter: F300 | Air filter: F600 | Air filter: F600 |
| Standard attachments | Screw type drain cock, bowl guard | Screw type drain cock, bowl guard | Screw type drain cock, bowl guard |
| Standard attachments | Pressure gauge G3-40 (φ 40×0.3 MPa [44psi.]) | Pressure gauge G3-40 (φ 40×0.3 MPa [44psi.]) | Pressure gauge G3-40 (φ 40×0.3 MPa [44psi.]) |
