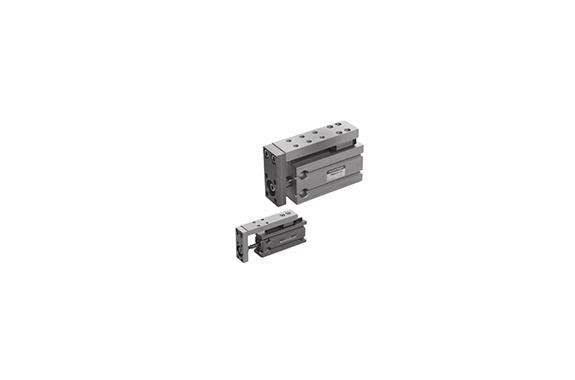

Koganei High Multi Cylinders With Guides

Manufacturer: KOGANEI CORPORATION

Features

Compact & direct mounting
Rectangular body and 6-face-mounting enable a compact and direct mounting.

Standardizing cylinders with guides
Linear guide is installed to pursue space saving as well as non-rotating accuracy.

The embedded sensor switch is employed
The embedded type sensor switch is employed to prevent anything protruding from the main body.
Sensor switches are placed in the sensor mounting groves located on the 2 faces of main body.

Specifications

Item	Cylinder bore 6 [0.236]	10 [0.394]	16 [0.630]	20 [0.787]
Operation type	Double acting type
Media	Air
Operating pressure range MPa [psi.]	0.2～0.7 [29～102]	0.15～0.7 [22～102]	0.1～0.7 [15～102]	0.1～0.7 [15～102]
Proof pressure MPa [psi.]	1.05 [152]
Operating temperature range °C [°F]	0～60 [32～140]
Operating speed range mm/s [in/sec]	100～500 [4～20]	50～500 [2～20]
Cushion	Rubber bumper
Lubrication	Cylinder portion Not required (If used, use turbine oil class 1 [ISO VG32] or equivalent)	Guide portion Not required (If lubricated, use lithium-soap base grease)
Port size	M5 × 0.8, M3 × 0.5 (in the case with rear piping base)
Running parallelism mm [in.]	0.1 [0.004]
Allowable moment N·m [in·lbf]	Pitching: 0.39 [3.45] Rolling: 0.58 [5.13] Yawing: 0.47 [4.16]	Pitching: 0.51 [4.51] Rolling: 1.02 [9.03] Yawing: 0.51 [4.51]	Pitching: 1.02 [9.03] Rolling: 2.08 [18.41] Yawing: 1.02 [9.03]	Pitching: — Rolling: — Yawing: —
