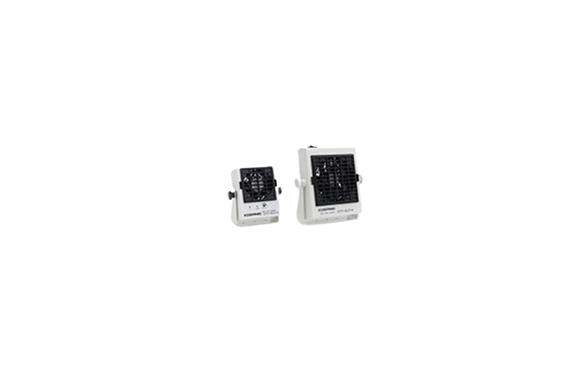

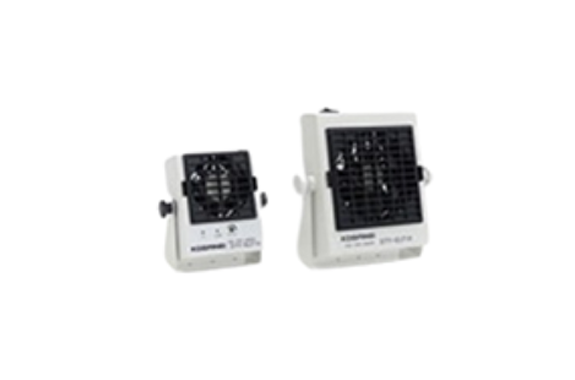

Koganei Ionizer Fan Type Multi Function Type DTY-ELF14HC

Manufacturer: KOGANEI CORPORATION

Features

High-Frequency Technology: To begin with, the high-frequency AC type system enables an outstanding ion balance.
Consistent Neutralization: Furthermore, the high-performance 200 Hz AC system produces an excellent ion balance of $\pm$ 5V.
Long-Term Reliability: Consequently, these specifications ensure steady, long-term elimination of static electricity.
Safe Emission Levels: Additionally, the hardware maintains extremely low ozone production at less than 0.004 ppm.

Diverse Nozzle Options: Moreover, a wide array of nozzle types enables charge removal ranging from pinpoint targets to wide area workpieces.
Extended Reach: Specifically, the blow type models allow for ion transport through tubing and metal piping.
Wide Coverage: In a similar fashion, wide-angle louvers eliminate static charge over an extensive range.
Adjustable Output: Therefore, the airflow volume control allows operators to adjust the discharge smoothly for different tasks.

Cleanroom Optimization: To support sensitive environments, a specific model employs charge removal needles made of special alloys.
Contamination Control: Because of this material choice, the unit dramatically reduces dust generation.
Air Consumption Savings: Meanwhile, the air-saving type sucks in outside air for blowing.
Operational Economy: As a result, this unique design significantly reduces air consumption during operation.

Easy Servicing: For simplified upkeep, the design features a simple connection and disconnection mechanism for the needle unit.
Hands-Free Cleaning: Furthermore, an automatic cleaning function means that manual maintenance of the discharge needle is not needed for certain models.
Visual Verification: Additionally, the balance indicator allows users to confirm the ratio of positive and negative ions at a glance.
Automated Safety: Finally, the system includes an alarm output function to detect problems with discharge, high-voltage circuits, or fans.
Global Standards: Naturally, all models remain CE marking compliant to ensure industrial safety standards.

Item \ Model		DTY-ELF14HC
Input voltage		DC24V±5%
Consumption current mA		750
Output voltage kV		±7.5
Indicator LED	POWER (green)	Lit when power is on
	RUN (green)	Lit when high voltages are applied to electrodes
	ALARM (red)	Lights when there is a problem with the static discharge, circuits, fan, or cleaning brush
	ION BALANCE (red, yellow, green)	Indicates ion balance in 5 levels
	AUTO ON (yellow)	Lights when automatic cleaning is ON
Output		ALARM LED lights when no-voltage at b contact output (24 VDC, 50 mA MAX) Ion balance abnormal (red LED lights) when no-voltage at b contact output (24 VDC, 50 mA MAX)
Ion balance^{Note 1} V		Within ±5
Static charge elimination time^{Note 1} seconds		1 or less
Amount of ozone generated^{Note 2} ppm		0.004
Fan power	Maximum airflow m³/min	3.2
Fan power	Control	Smooth control with airflow volume adjustment
External dimensions^{Note 3} mm [in.]		150W×182H×75D [5.9×7.2×2.953]
Weight^{Note 4} g [oz]		1240 [44]
Usage environment		Indoor 0 to 40°C [32 to 104°F], 15 to 85% RH (with no condensation)
Attachments/accessories		Instruction manual, AC adapter, wide-angle louvers Output signal lead wires (3-piece set)
