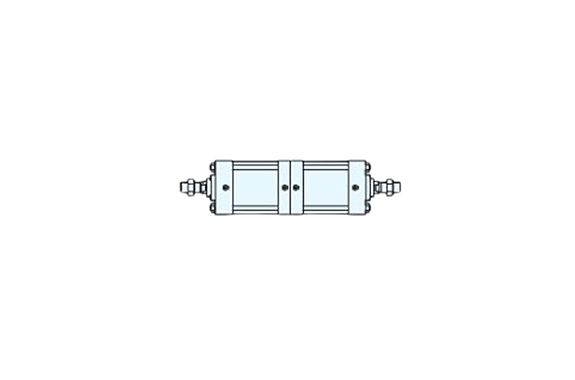

Koganei KSD Dual Stroke Cylinders KBSDW (Aluminum Tube Type) φ125, φ140, φ160
Manufacturer: KOGANEI CORPORATION
Features
Installation dimensions comply with JIS standards (JIS B 8368) (Excluding φ140 and φ…)
A wide selection of variations!
Cylinder bores φ125 to φ250 (Up to φ160 for sensor cylinder)
Strokes up to 2000 mm supported (Depends on model)
Compatible with Class 2 pressure vessel
Specifications
| Item | Cylinder bore mm | 125 | 140 | 160 |
|---|---|---|---|---|
| Operating type | Double acting type | |||
| Medium | Air | |||
| Mounting type | Basic type, foot type, flange type, head side flange type, clevis type, eye type, trunnion type | |||
| Operating pressure range | MPa | 0.1 to 0.7 | ||
| Proof pressure | MPa | 1.05 | ||
| Operating temperature range | °C | 0 to 60 (no freezing) | ||
| Operating speed range | mm/s | 50 to 700 | ||
| Cushion | Variable cushion at both stroke ends | |||
| Cushion stroke | mm | 17 (rod side), 15 (head side) | 20 (rod side, head side) | — |
| Lubrication | Not required (If lubrication will be applied, use Class 1 turbine oil [ISO VG32] or its equivalent.) | |||
| Connection port size | Rc | 1/2 | — | 3/4 |
