Manufacturer: KOGANEI CORPORATION|

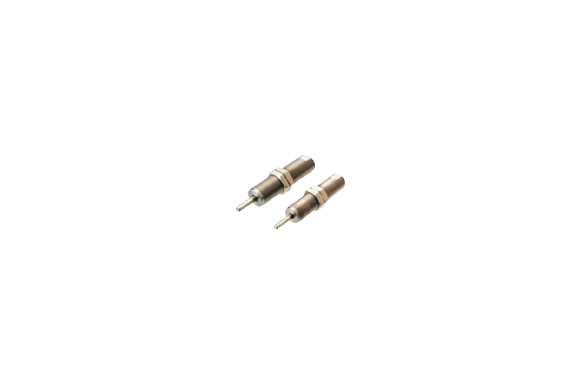

Model: KSHJ Seriesc
Features
Enhance industrial automation with our high-durability, long-life pneumatic cylinders and advanced shock absorbers. These double-acting cylinders feature improved durability with standard external dimensions for easy replacement. For adverse environments, the KSHW and KSHY shock absorber series provide outstanding suction through a linear orifice structure, effectively absorbing impacts even in the presence of cutting oil, water, or dust. With 18 series and 132 types available, our range supports everything from gram to ton units to maximize efficiency and reduce maintenance waste.
Specifications
| Model (in inches) | KSHJ4×3-01 | KSHJ4×3-02 | KSHJ6×4-01 | KSHJ6×4-02 | KSHJ6×6-01 | KSHJ6×6-02 |
|---|
| Maximum absorption capacity | J (in.lbs) | 0.3 (2.7) | 0.2 (1.8) | 0.5 (4.4) | 0.3 (2.7) | 1 (8.9) | 0.5 (4.4) |
|---|
| Absorption stroke | mm (in.) | 3 (0.118) | 4 (0.157) | 6 (0.236) |
|---|
| Impact speed range | m/s (ft/s) | 0.1 to 0.8 | 0.1 to 1 | 0.1 to 1 (0.33 to 3.28) | 0.1 to 1 (0.33 to 3.28) |
|---|
| Maximum operating cycle | cycle/min | 90 | 30 |
|---|
| Model (in inches) | KSHJ8×4-01 | KSHJ8×4-02 | KSHJ8×5-01 | KSHJ8×8-01 | KSHJ8×8-02 |
|---|
| Maximum absorption capacity | J (in.lbs) | 0.75 (6.6) | 0.5 (4.4) | 1 (8.9) | 2 (17.7) |
|---|
| Absorption stroke | mm (in.) | 4 (0.157) | 5 (0.197) | 8 (0.315) |
|---|
| Impact speed range | m/s (ft/s) | 0.1 to 1 (0.33 to 3.28) | 0.1 to 1 | 0.1 to 2 |
|---|
| Model (in inches) | KSHJ10×6-01 | KSHJ10×6-02 | KSHJ10×10-01 | KSHJ10×10-02 | KSHJ10×15-01 | KSHJ10×15-03 |
|---|
| Maximum absorption capacity | J (in.lbs) | 1.25 (11.1) | 0.75 (6.6) | 3 (26.6) | 5 (44.3) | 6.5 (57.6) |
|---|
| Absorption stroke | mm (in.) | 6 (0.236) | 10 (0.394) | 15 (0.591) |
|---|
| Impact speed range | m/s (ft/s) | 0.1 to 1 (0.33 to 3.28) | 0.1 to 2 | 0.1 to 1 | 0.1 to 3 |
|---|
