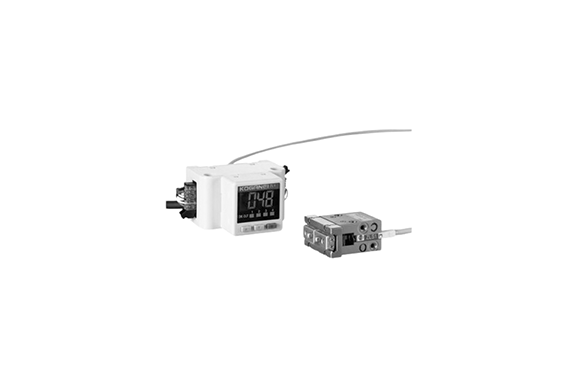

Koganei Linear Magnetic Sensor Controller

Manufacturer: KOGANEI CORPORATION

Features

The system senses the linear position of the cylinder within the specified range. Furthermore, exchange with control devices is made possible due to standard equipment for analog output (1 to 5 VDC). Additionally, switch output is available in four places, enabling simple position detection.

Moreover, the sensor head is designed with the same shape as the ZE sensor switch. As a result, it is fully compatible with actuators that are equipped with the ZE sensor switch.

Specifications

ZL1 Model
Power supply voltage	24 VDC ±10%
Consumption current	50 mA max. (not including supply power to sensor)
Sensor input supply power and voltage	5 VDC
Sensor input maximum input voltage	3.0 V
Switch output method	NPn open collector output, 5 points
Load voltage	30 VDC
Load current	50 mA max.
Switch output volume repeatability	±1% FS. ±1 digit
Internal voltage drop	0.3 V max. (When Ic = 5 mA)
Response time	5 ms MAX.
Operation indicator light	Lights red when each switch output is on
Value display	% display within effective measuring range (4 digits, 2-color display: red and green)
Analog output voltage range	1 to 5 VDC (1 KΩ output impedance)
Analog output repeatability	±1% of FS (25°C±5°C [77°F±9°F])
Insulation resistance	100 MΩ min. (at 500 VDC megger, between case and lead wire terminal)
Withstand voltage	500 VAC (50/60 Hz) 1 minute (between case and lead wire terminal)
Shock resistance	294.2 m/s² [30 G] (non-repeated shock)
Ambient temperature	0 to 50°C [32 to 122°F] (non-condensation, non-freezing)
Storage temperature range	-10 to 70°C [14 to 158°F] (non-condensation, non-freezing)
Mass	40 g [1.411 oz]

ZLS1 Model
Power supply voltage	5 VDC ±5%
Consumption current	20 mA MAX.
Mounting methods	Embedded type
Operation indicator light	Red LED lights at optimal sensitivity position (Operation position can be changed by settings)
Lead wires	Heat-resistant, oil-resistant vinyl sheath instrumentation cable φ2.9 [0.114″] 0.15mm² 5-lead with 6 P connectors
Insulation resistance	100 MΩ min. (at 500 VDC megger, between case and lead wire terminal)
Withstand voltage	500 VAC (50/60 Hz) 1 minute (between case and lead wire terminal)
Shock resistance	294.2 m/s² [30 G] (non-repeated)
Vibration resistance	88.3 m/s² [9 G] (total amplitude of 1.5 mm [0.059 in], 10 to 55 Hz)
Ambient temperature	0 to 50°C [32 to 122°F] (non-condensation, non-freezing)
Storage temperature range	-10 to 70°C [14 to 158°F] (non-condensation, non-freezing)
Mass	20 g [0.705 oz] (when 1 L lead wire length is 1000 mm [39 in])
