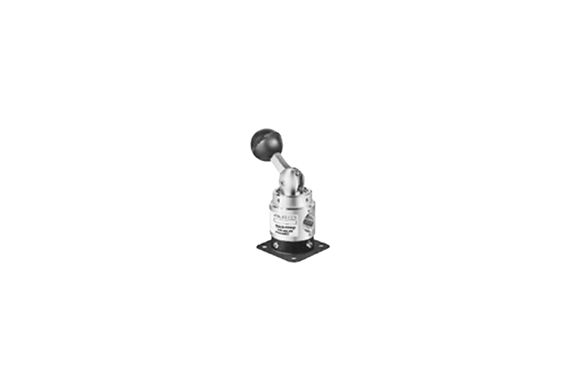

This lever-type manual mechanical valve features a compact design that securely attaches to the main unit panel using nuts. Additionally, the lever remains in the lowered position on its own, ensuring ease of use and stability. As a result, it simplifies the operation process, making it a highly reliable solution for your equipment needs.
Specifications
| Item | 125V | 250V | 2503V |
|---|---|---|---|
| Basic model | 125V | 250V | 2503V |
| Port size | Rc1/8 | Rc1/4 | Rc3/8 |
| Media | Air | Air | Air |
| Operating pressure range | 0 ~ 0.9MPa [0 ~ 131psi] | 0 ~ 0.9MPa [0 ~ 131psi] | 0 ~ 1.0MPa [0 ~ 145psi] |
| Proof pressure | 1.35MPa [13.8] [196psi] | 1.35MPa [13.8] [196psi] | 1.35MPa [13.8] [196psi] |
| Operating temperature range (atmosphere and media) | 5 ~ 60°C [41 ~ 140°F] | 5 ~ 60°C [41 ~ 140°F] | 5 ~ 60°C [41 ~ 140°F] |
| Effective area | 5.5 mm² | 15 mm² | 15 mm² |
| Flow coefficient | 0.27 Cv | 0.76 Cv | 0.76 Cv |
| Valve stroke | 0.8 mm [0.031 in.] | 1.6 mm [0.063 in.] | 1.6 mm [0.063 in.] |
| Lubrication | Not required | Not required | Not required |
| Mass | 0.11 kg [0.24 lbs] | 0.24 kg [0.53 lbs] | 0.29 kg [0.64 lbs] |
| Options | 2-port | 2-port | 2-port |
| Order codes | With lock nuts for panel mounting ~22 | With lock nuts for panel mounting ~22 | With lock nuts for panel mounting ~22 |
