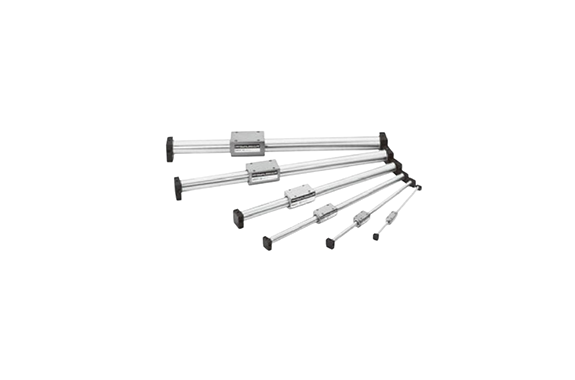

Koganei MRC Basic Type
Manufacturer: KOGANEI CORPORATION
Features
1. The installation is easy.
The end cover can be installed directly as the block type, without using a mounting bracket.
2. The sensor switch can be used.
The end of the stroke position can be easily detected in the H types by just installing a sensor switch, except for bore size 6mm [0.236 in.].
Allowable swing angle of slider: ±30°
3. Installation of M mount
M mount, which eliminates excessive load by moment, is optional. When M mount is used, compensating misalignment and smooth operation become possible.
Specifications
| Item | Bore size mm [in.] 6 [0.236] | 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] |
|---|---|---|---|---|---|---|---|
| Operation type | Double acting type | ||||||
| Media | Air | ||||||
| Operating pressure range MPa [psi.] | 0.18～0.7 [26～102] | 0.15～0.7 [22～102] | |||||
| — | 0.1～0.34 [15～49] | ||||||
| Proof pressure MPa [psi.] | 1.03 [149] | ||||||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||||||
| Operating speed range mm/s [in./sec.] | 100～400 [3.9～15.7] | 100～400 [3.9～15.7] | |||||
| Cushion | Rubber bumper | ||||||
| Lubrication | Not required | ||||||
| Stroke tolerance mm [in.] | 1000 or less: +1.5 [+0.059] / 0 | ||||||
| 1001～1500: +2.0 [+0.079] / 0 | |||||||
| Port size | M5 × 0.8 | M5 × 0.8 | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/4 | Rc1/4 |
