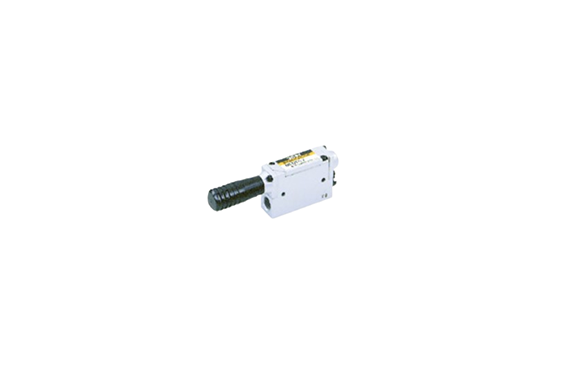

The MEDT Series features a two-level nozzle construction that delivers approximately twice the suction flow rate while using the same nozzle diameter. As a result, it enhances vacuum efficiency without increasing size. Moreover, this optimized design supports stable performance and improves overall system productivity.
Specifications
| Item | MEDT07 | MEDT10 | MEDT12 | MEDT14 |
|---|---|---|---|---|
| Media | Air | |||
| Operating pressure range MPa [psi] | 0.2 ~ 0.6 [29 ~ 87] | |||
| Proof pressure MPa [psi] | 1.03 [149] | |||
| Operating temperature range (atmosphere and media) °C [°F] | 5 ~ 50 [41 ~ 122] | |||
| Nozzle diameter mm [in.] | 0.7 [0.028] | 1.0 [0.039] | 1.2 [0.047] | 1.4 [0.055] |
| Vacuum kPa [in.Hg] | -84 [-24.8] | |||
| Vacuum flow rate ℓ/min [ft³/min] (ANR) | 25 [0.88] | 50 [1.77] | 85 [3.00] | 95 [3.35] |
| Compressed air consumption ℓ/min [ft³/min] (ANR) | 23 [0.81] | 46 [1.62] | 72 [2.54] | 96 [3.39] |
| Lubrication | Prohibited | |||
| Filtration μm | 30 | |||
| Port size | Vacuum generation port: Rc1/8 | Vacuum generation port: Rc1/4 | ||
| Compressed air supply port: Rc1/8 | Compressed air supply port: Rc1/4 | |||
| Mounting direction | Any | |||
