KOGANEI CORPORATION

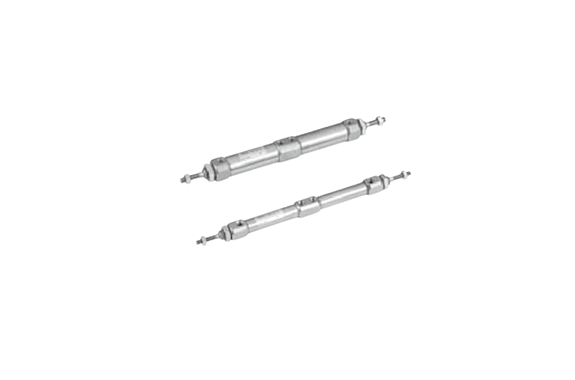

Koganei Pen Cylinders Dual Stroke Cylinders
Manufacturer: KOGANEI CORPORATION
Features
The Pen Cylinder’s compactness and easy handling make production lines in a broad range of industries.
A new release with even lighter weight and more.
Specifications
| Item | Bore size mm [in.] | |
|---|---|---|
| 10 [0.394] | 16 [0.630] | |
| Operation type | Double acting type | |
| Mounting type | See the table at lower right | |
| Media | Air | |
| Operating pressure range MPa [psi.] | 0.08～0.7 [12～102] | 0.06～0.7 [9～102] |
| Proof pressure MPa [psi.] | 1.05 [152] | |
| Operating temperature range °C [°F] | 0～70 [32～158] | |
| Operating speed range mm/s [in./sec.] | 50～750 [2.0～29.5] | 50～750 [2.0～29.5] |
| Cushion | Fixed type (Rubber bumper) | |
| Lubrication | Not required | |
| Port size | M5 X 0.8 | |
