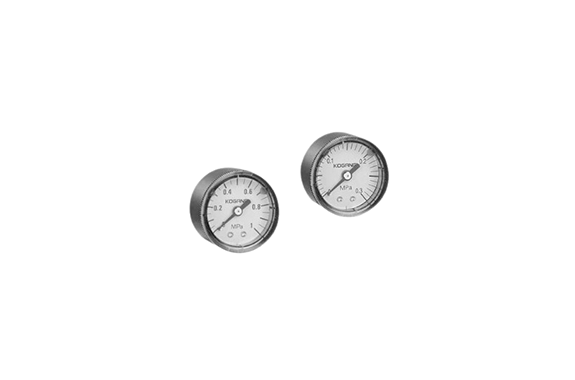

Koganei Pressure Gauges G1-40, G3-40, G6-40
Manufacturer: KOGANEI CORPORATION
Features
This compact pressure gauge, with an external dimension of 40 mm (1.575 in), is perfect for space-constrained applications. Moreover, it features a built-in mechanism that effectively prevents the pressure gauge from falling out of the case. As a result, this added feature enhances both security and durability during use.
Specifications
| Item | Model | G1-40 | G3-40 | G6-40 |
|---|---|---|---|---|
| Media | Air | |||
| Port size | R1/4 (M5 X 0.8) | |||
| Pressure indication range | MPa [psi] | 0～1.0 [0～145] | 0～0.3 [0～44] | 0～0.6 [0～87] |
| Accuracy | F.S. ±3% | |||
| Outer diameter | mm [in.] | 40 [1.57] | 40 [1.57] | 40 [1.57] |
| Maximum operating pressure | MPa [psi] | 0.93 [135] | 0.25 [36] | 0.55 [80] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] | ||
| Mass | kg [lb.] | 0.09 [0.20] | 0.09 [0.20] | 0.09 [0.20] |
| Materials | Case | ABS | ||
| Flats of nipple section | Brass | |||
| Bourdon tube | Brass | |||
