The pressure switch module, compatible with the FRZ and FRZB Series, plays a crucial role in system functionality. However, it’s important to note that this module cannot be used with the FRZ Series FRZ3_ or RZ3_ models. By understanding this limitation, you can ensure compatibility and avoid installation issues
KOGANEI CORPORATION

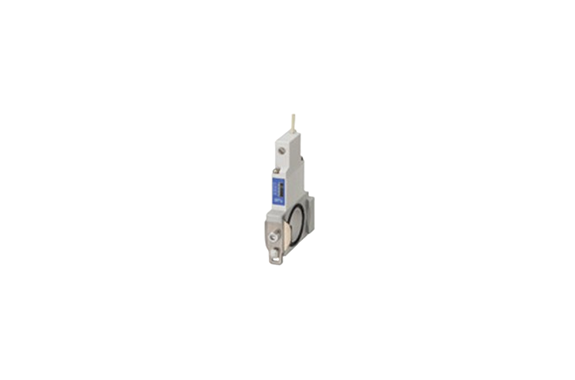

Koganei Pressure Switch Module Psi Gauge
Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Item | 8Z-PS-F11 | 8Z-DPS-F11 |
|---|---|---|
| Media | Air | Air |
| Connection method | Specifically for FRZ series module installation | Specifically for FRZ series module installation |
| Maximum operating pressure | 145 psi | 145 psi |
| Proof pressure | 218 psi | 218 psi |
| Operating temperature range (atmosphere and media) | 41 to 140°F (non-condensation) | 41 to 140°F (non-condensation) |
| Pressure setting range | 15 to 58 psi | 15 to 58 psi |
| Response differential | 12 psi or less | 12 psi or less |
| Contact type | Reed contact of “a” contact (NO) | Reed contact of “a” contact (NO) |
| Electrical Specifications | ||
| Wiring type | 2 wire type | 2 wire type |
| Load voltage | 5 to 28 VDC, 85 to 115 VAC | 5 to 28 VDC, 85 to 115 VAC |
| Load current | DC 40 mA MAX, AC 20 mA MAX | DC 40 mA MAX, AC 20 mA MAX |
| Internal voltage drop | 0.1 V MAX (at load current of DC 40 mA) | 0.1 V MAX (at load current of DC 40 mA) |
| Leakage current | 0 mA | 0 mA |
| Response time | 1 ms MAX | 1 ms MAX |
| Insulation resistance | 100 MΩ MIN. (500 VDC Megger, between case and lead wire terminal) | 100 MΩ MIN. (500 VDC Megger, between case and lead wire terminal) |
| Dielectric strength | 1500 VAC (50/60 Hz) in 1 minute (between case and lead wire terminal) | 1500 VAC (50/60 Hz) in 1 minute (between case and lead wire terminal) |
| Shock resistance | 30 G (non-repeated) | 30 G (non-repeated) |
| Vibration resistance | 9 G (total amplitude 0.059 in 10 to 55 Hz) resonance frequency 2750 ±250 Hz | 9 G (total amplitude 0.059 in 10 to 55 Hz) resonance frequency 2750 ±250 Hz |
| Lead wires | PCCV 2.0 SQ × 2-wire (brown and blue) × ℓ | PCCV 2.0 SQ × 2-wire (brown and blue) × ℓ |
| Contact protection measure | Required | Required |
| Mass | 2.12 oz (for wire length A: 1000 mm [39 in]) | 3.00 oz (for wire length A: 1000 mm [39 in]) |
