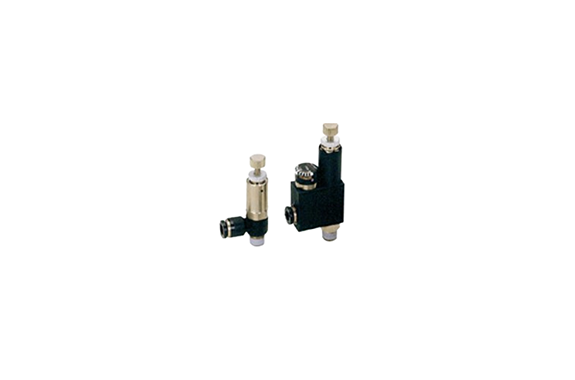

The regulator reduces media pressure and immediately supplies media through the fitting port. Additionally, its convenient built-in quick fittings create a compact and efficient design. Furthermore, a version with a pressure gauge is available, allowing users to confirm pressure quickly and accurately.
Specifications
| Media | Air |
|---|---|
| Operating pressure range | 0～0.9MPa [0～131psi] |
| Pressure setting range | 0.1～0.8MPa [14.5～116psi] |
| Indication pressure range | 0～0.8MPa [0～116psi] |
| Accuracy (Pressure gauge) | ±5% (full-scale) |
| Operating temperature range | 0～60°C [32～140°F] |
| Recommended tube | Nylon tube, urethane tube |
| Sales unit | 1 pc. |
