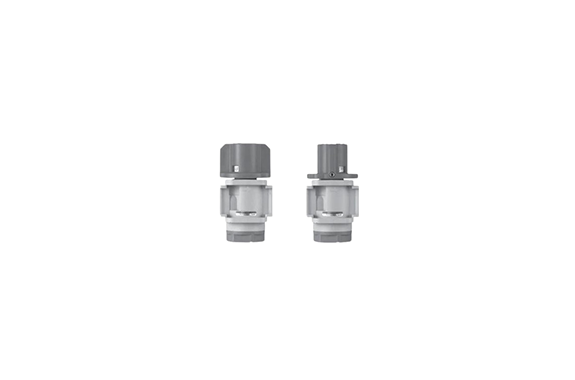

Koganei Residual Pressure Exhaust Valve 50VZ-F11

Manufacturer: KOGANEI CORPORATION

Features

The pressure in the air line is efficiently exhausted through a 3-port valve, ensuring smooth operation. Furthermore, a lock mechanism with a lock hole enhances safety while exhausting residual pressure, offering added security. In addition, the operating knob features a bright red color for improved visibility, making it easier to locate and use.

Specifications

Item	Model	50VZ-F11-01	50VZ-F11-02	50VZ-F11-03	50VZ-F11-04
Media		Air
Port size	NPT	1 (P) and 2 (A)	1/8	3 (R)	1/2
Maximum operating pressure	psi	145	145	145	145
Proof pressure	psi	218	218	218	218
Operating temperature range (atmosphere and media)	°F	41 to 140	41 to 140	41 to 140	41 to 140
Method of operation		Manually operated Knob
Number of positions and ports		2 positions and 3 ports
Operating torque of knob	ft·lbf	0.74	0.74	0.74	0.74
Knob operation angle	°	90°	90°	90°	90°
Knob operation angle	1 (P) → 2 (A)	Sonic conductance C	dm³/s·bar	4.28	8.60	12.46	13.36
Critical pressure ratio	b	0.23	0.38	0.21	0.31
Effective area	mm²	1.19	43.01 [2.39]	62.28 [3.71]	66.81 [3.71]
Knob operation angle	2 (A) → 3 (R)	Sonic conductance C	dm³/s·bar	7.87	7.87	12.46	13.36
Critical pressure ratio	b	0.89	0.89	0.89	0.89
Effective area	mm²	39.36 [2.19]	43.01 [2.39]	62.28 [3.71]	66.81 [3.71]
Materials of major parts	Body	Die cast aluminum alloy	Die cast aluminum alloy	Die cast aluminum alloy	Die cast aluminum alloy
	Knob	Polyacetal	Polyacetal	Polyacetal	Polyacetal
Mass	lb	0.49	0.49	0.49	0.46
Options		Bracket (Steel plate (electroless nickel plated))	Bracket (Steel plate (electroless nickel plated))	Bracket (Steel plate (electroless nickel plated))	Bracket (Steel plate (electroless nickel plated))
