KOGANEI CORPORATION

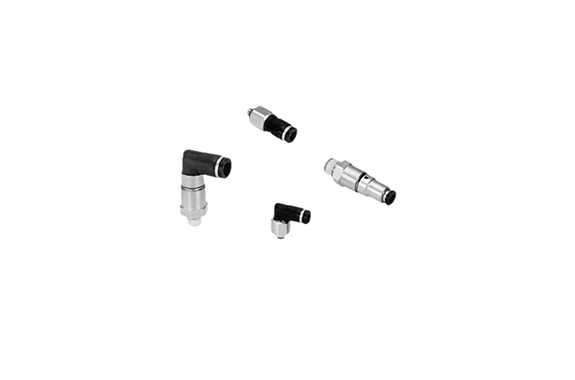

Koganei Rotary Type Quick Fittings Standard Type
Manufacturer: KOGANEI CORPORATION
Features
- Optimum for swing and rotating portions, and built-in bearing for smooth operation.
Specifications
| Item | Model | TSR, TLR | φ4 | φ6 | φ8 | φ10 | φ12 |
|---|---|---|---|---|---|---|---|
| Applicable tube size | φ4 | φ6 | φ8 | φ10 | φ12 | ||
| Media | Air | ||||||
| Maximum operating pressure | MPa [psi] | 0.9MPa [131psi] | |||||
| Operating vacuum pressure | MPa [psi] | −100kPa [−29.54in.Hg] | |||||
| Operating temperature range | °C [°F] | 0〜60°C [32〜140°F] | |||||
| Recommended tube | Nylon tube, urethane tube | ||||||
| Allowable rotating speed | r.p.m. | 500 | 400 | 300 | 250 | ||
| Color of release ring | Black | ||||||
| Sales unit | 1 pc. | ||||||
