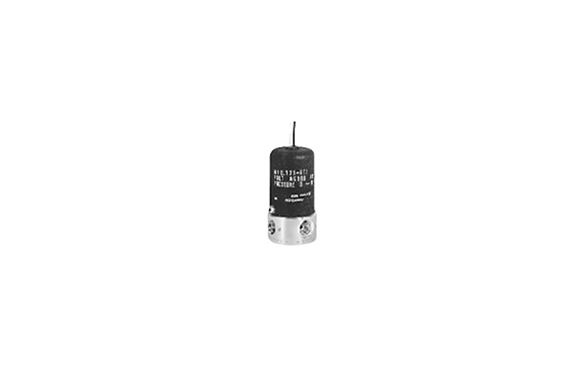

Koganei Round Type Solenoid Valves 126 Series Direct Acting 2-Port
Manufacturer: KOGANEI CORPORATION
Features
High reliability comes from a long track record of success, and it consistently supports dependable performance. Furthermore, the original poppet system and the diaphragm-and-poppet design work together to virtually eliminate air leaks. As a result, the valve maintains stable sealing and continues to operate efficiently across demanding applications.
Specifications
Item Model | 126E1 | 126E1-11 |
| Media | Air | |
| Operation type | Direct acting type | |
| Effective area (Cv) mm² | 5.5 (0.27) | |
| Port size | Rc 1/4 | |
| Lubrication | Not required | |
| Operating pressure range MPa (kgf/cm²) [psi.] | 0~0.5 (0~5.1) [0~73] | |
| Proof pressure MPa (kgf/cm²) [psi.] | 0.75 (7.7) [109] | |
| Response time ON/OFF ms | ON 30 | |
| OFF 30 | ||
| Maximum operating frequency Hz | 4 | |
| Minimum time to energize for self holding ms | — | — |
| Operating temperature range (atmosphere and media) °C [°F] | 0~60 [32~140] | |
| Mounting direction | Any | |
| Mass kg [lb.] | 0.3 [0.66] | |
